Summary0001969: Automatic creation of guides (split page in 2, 3, 4...)
DescriptionIt is often useful to be able to create guides in the middle of the page, or to make 3 equal columns in the page.

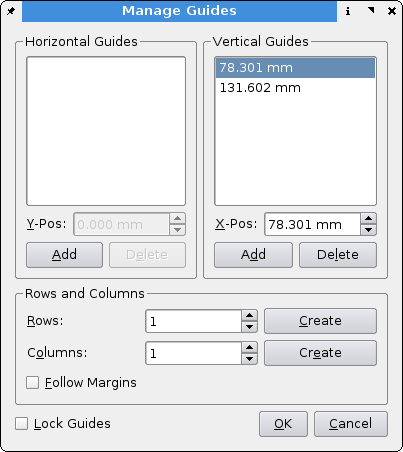

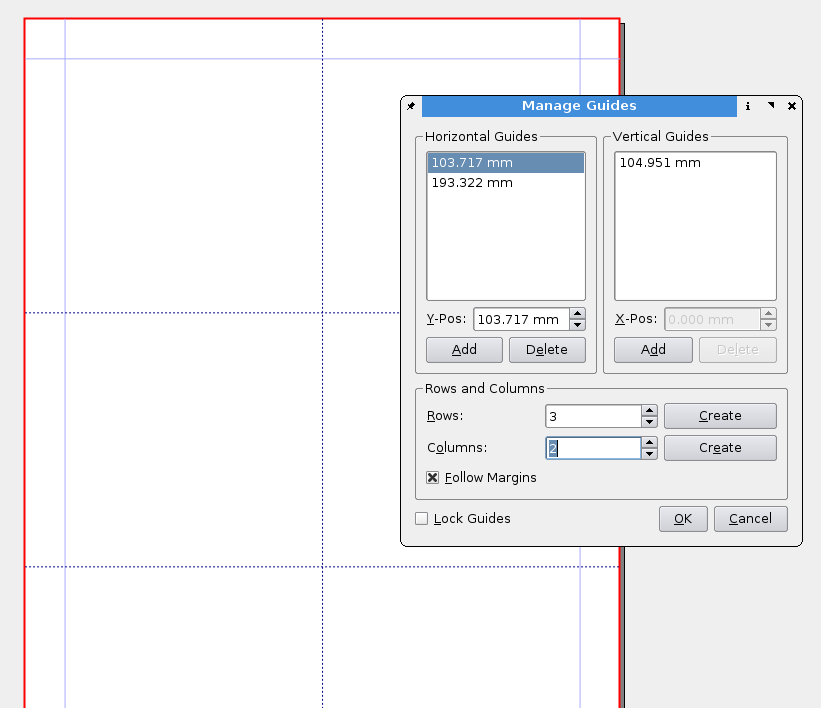

So I changed a bit the "guide manager" dialog to allow automatic creation of guides in the page. I include a screenshot, and I have a fully functionnal patch against 1.3 cvs if you are interested.

Regards
TagsNo tags attached.
Patch

Activities

2005-05-08 16:16




2005-05-08 16:33



guide.diff (7,958 bytes)
Index: scribus.cpp
===================================================================
RCS file: /cvs/Scribus/scribus/scribus.cpp,v
retrieving revision 1.228.2.296
diff -u -3 -p -u -r1.228.2.296 scribus.cpp
--- scribus.cpp	8 May 2005 10:41:35 -0000	1.228.2.296
+++ scribus.cpp	8 May 2005 18:32:30 -0000
@@ -9593,6 +9593,10 @@ void ScribusApp::ManageGuides()
 		                        doc->currentPage->YGuides,
 		                        doc->currentPage->Width,
 		                        doc->currentPage->Height,
+					doc->PageM.Top,
+					doc->PageM.Bottom,
+					doc->PageM.Left,
+					doc->PageM.Right,
 		                        doc->GuideLock,
 		                        doc->docUnitIndex
 		                    );
Index: guidemanager.cpp
===================================================================
RCS file: /cvs/Scribus/scribus/guidemanager.cpp,v
retrieving revision 1.22.2.5
diff -u -3 -p -u -r1.22.2.5 guidemanager.cpp
--- guidemanager.cpp	17 Apr 2005 14:51:23 -0000	1.22.2.5
+++ guidemanager.cpp	8 May 2005 18:32:31 -0000
@@ -53,6 +53,10 @@ GuideManager::GuideManager(
         QValueList<double> YGuides,
         double PageW,
         double PageH,
+	double topM,
+	double bottomM,
+	double leftM,
+	double rightM,
         bool GuideLock,
         int Einh
     ) : QDialog(parent, "GuideManager", true, 0)
@@ -72,6 +76,11 @@ GuideManager::GuideManager(
 	LocPageWidth = PageW;
 	LocPageHeight = PageH;
 	LocLocked = GuideLock;
+	LocTop=topM;
+	LocBottom=bottomM;
+	LocRight=rightM;
+	LocLeft=leftM;
+
 	selHor = selVer = -1;

 	/* Create the dialog elements */
@@ -88,7 +97,7 @@ GuideManager::GuideManager(
 	HorGroupLayout->setAlignment(Qt::AlignTop);

 	HorList = new QListBox(HorGroup, "HorList");
-	HorList->setMinimumSize(QSize(0, 200));
+	HorList->setMinimumSize(QSize(0, 150));
 	HorGroupLayout->addWidget(HorList);

 	Layout4 = new QHBoxLayout(0, 0, 6, "Layout4");
@@ -114,7 +123,7 @@ GuideManager::GuideManager(
 	Layout3->addWidget(HorDel);

 	HorGroupLayout->addLayout(Layout3);
-
+
 	Layout6->addWidget(HorGroup);

 	VerGroup = new QGroupBox(this, "VerGroup");
@@ -126,7 +135,7 @@ GuideManager::GuideManager(
 	VerGroupLayout->setAlignment(Qt::AlignTop);

 	VerList = new QListBox(VerGroup, "VerList");
-	VerList->setMinimumSize(QSize(0, 200));
+	VerList->setMinimumSize(QSize(0, 150));
 	VerGroupLayout->addWidget(VerList);

 	Layout2 = new QHBoxLayout(0, 0, 6, "Layout2");
@@ -156,6 +165,58 @@ GuideManager::GuideManager(
 	Layout6->addWidget(VerGroup);

 	GuideManagerLayout->addLayout(Layout6);
+
+
+	Layout7 = new QHBoxLayout(0, 0, 6, "Layout7");
+
+	QGroupBox *HorGroup2 = new QGroupBox(this, "HorGroup");
+	HorGroup2->setTitle( tr("Rows and Columns"));
+	HorGroup2->setColumnLayout(0, Qt::Vertical);
+	HorGroup2->layout()->setSpacing(6);
+	HorGroup2->layout()->setMargin(11);
+	QVBoxLayout *HorGroupLayout2 = new QVBoxLayout(HorGroup2->layout());
+	HorGroupLayout2->setAlignment(Qt::AlignTop);
+
+	Layout8 = new QHBoxLayout(0, 0, 6, "Layout8");
+	QLabel *TextLabel8 = new QLabel(tr("&Rows:"), HorGroup2, "TextLabel8");
+	Layout8->addWidget(TextLabel8);
+
+	RowSpin = new QSpinBox(1, 100, 1, HorGroup2, "rowspin");
+	TextLabel8->setBuddy(RowSpin);
+	Layout8->addWidget(RowSpin);
+
+	QPushButton *RowSet = new QPushButton( tr( "&Create" ), HorGroup2, "RowSet");
+	RowSet->setAutoDefault(false);
+	Layout8->addWidget(RowSet);
+
+	Layout9 = new QHBoxLayout(0, 0, 6, "Layout9");
+	QLabel *TextLabel9 = new QLabel(tr("C&olumns:"), HorGroup2, "TextLabel9");
+	Layout9->addWidget(TextLabel9);
+
+	ColSpin = new QSpinBox(1, 100, 1, HorGroup2, "ColSpin");
+	TextLabel9->setBuddy(ColSpin);
+	Layout9->addWidget(ColSpin);
+
+
+	QPushButton *ColSet = new QPushButton( tr( "Cr&eate" ), HorGroup2, "ColSet");
+	ColSet->setAutoDefault(false);
+	Layout9->addWidget(ColSet);
+
+	Layout10 = new QHBoxLayout(0, 0, 6, "Layout10");
+	Marg = new QCheckBox( tr( "&Follow Margins" ), HorGroup2, "marg");
+	Layout10->addWidget(Marg);
+
+	QSpacerItem* spacer2 = new QSpacerItem( 0, 0, QSizePolicy::Expanding, QSizePolicy::Minimum);
+	Layout10->addItem(spacer2);
+
+
+	Layout7->addWidget(HorGroup2);
+	HorGroupLayout2->addLayout(Layout8);
+	HorGroupLayout2->addLayout(Layout9);
+	HorGroupLayout2->addLayout(Layout10);
+
+	GuideManagerLayout->addLayout(Layout7);
+

 	Layout5 = new QHBoxLayout(0, 0, 6, "Layout5");
 	Lock = new QCheckBox( tr( "&Lock Guides" ), this, "Lock");
@@ -184,6 +245,9 @@ GuideManager::GuideManager(
 	connect(HorList, SIGNAL(highlighted(QListBoxItem*)), this, SLOT(selHorIte(QListBoxItem*)));
 	connect(VerList, SIGNAL(highlighted(QListBoxItem*)), this, SLOT(selVerIte(QListBoxItem*)));
 	connect(HorSet, SIGNAL(clicked()), this, SLOT(AddHorVal()));
+	connect(RowSet, SIGNAL(clicked()), this, SLOT(AddRows()));
+	connect(ColSet, SIGNAL(clicked()), this, SLOT(AddCols()));
+
 	connect(HorDel, SIGNAL(clicked()), this, SLOT(DelHorVal()));
 	connect(HorSpin, SIGNAL(valueChanged(int)), this, SLOT(ChangeHorVal()));
 	connect(VerSet, SIGNAL(clicked()), this, SLOT(AddVerVal()));
@@ -265,6 +329,92 @@ void GuideManager::AddHorVal()
 	HorSpin->selectAll();
 }

+void GuideManager::AddRows()
+{
+	int n=QString(RowSpin->text()).toInt();
+	double offset=0;
+	double NewPageHeight=LocPageHeight;
+
+	if (Marg->isChecked())
+	{
+	NewPageHeight=LocPageHeight-LocTop-LocBottom;
+	offset=LocTop;
+	}
+
+	double spacing=NewPageHeight/n;
+	int selHor=0;
+	QValueList<double>::Iterator it;
+
+	for (int i=1;i<n;i++)
+	{
+	int n = static_cast<int>(LocHor.count());
+	int m = n;
+	double curHor = offset+spacing*i;
+
+	for (int i = n - 1; i > 0; i--)
+		if (curHor < LocHor[i - 1])
+			m = i;
+
+	selHor = m - 1;
+
+	if (m == n)
+	{
+		LocHor.append(curHor);
+		selHor = m - 1;
+	}
+	else
+	{
+		it = LocHor.at(selHor);
+		LocHor.insert(it,curHor);
+	}
+	}
+	UpdateHorList();
+}
+
+void GuideManager::AddCols()
+{
+	int n=QString(ColSpin->text()).toInt();
+	double offset=0;
+	double NewPageWidth=LocPageWidth;
+
+	if (Marg->isChecked())
+	{
+	NewPageWidth=LocPageWidth-LocLeft-LocRight;
+	offset=LocLeft;
+	}
+
+	double spacing=NewPageWidth/n;
+	int selVer=0;
+	QValueList<double>::Iterator it;
+
+	for (int i=1;i<n;i++)
+	{
+	int n = static_cast<int>(LocVer.count());
+	int m = n;
+	double curVer = offset+spacing*i;
+
+	for (int i = n - 1; i > 0; i--)
+		if (curVer < LocVer[i - 1])
+			m = i;
+
+	selVer = m - 1;
+
+	if (m == n)
+	{
+		LocVer.append(curVer);
+		selVer = m - 1;
+	}
+	else
+	{
+		it = LocVer.at(selVer);
+		LocVer.insert(it,curVer);
+	}
+	}
+	UpdateVerList();
+
+}
+
+
 void GuideManager::AddVerVal()
 {
 	if (HorSpin->hasFocus())
Index: guidemanager.h
===================================================================
RCS file: /cvs/Scribus/scribus/guidemanager.h,v
retrieving revision 1.5.2.4
diff -u -3 -p -u -r1.5.2.4 guidemanager.h
--- guidemanager.h	17 Apr 2005 14:34:08 -0000	1.5.2.4
+++ guidemanager.h	8 May 2005 18:32:31 -0000
@@ -25,6 +25,10 @@ public:
             QValueList<double> YGuides,
             double PageB,
             double PageH,
+	    double topM,
+	    double bottomM,
+	    double leftM,
+	    double rightM,
             bool GuideLock,
             int Einh
         );
@@ -37,6 +41,10 @@ public:
 private:
 	double LocPageWidth;
 	double LocPageHeight;
+	double LocTop;
+	double LocBottom;
+	double LocRight;
+	double LocLeft;
 	int docUnitIndex;

 	int selHor;
@@ -55,6 +63,10 @@ private:
 	MSpinBox* HorSpin;
 	QPushButton* HorSet;
 	QPushButton* HorDel;
+
+	QSpinBox* ColSpin;
+	QSpinBox* RowSpin;
+	QCheckBox* Marg;

 	QCheckBox* Lock;

@@ -65,6 +77,12 @@ private:

 	void UpdateHorList();
 	void UpdateVerList();
+
+	QHBoxLayout* Layout7;
+	QHBoxLayout* Layout8;
+	QHBoxLayout* Layout9;
+	QHBoxLayout* Layout10;
+

 	QVBoxLayout* GuideManagerLayout;
 	QHBoxLayout* Layout6;
@@ -95,6 +113,8 @@ private slots:

 	void ChangeHorVal();
 	void ChangeVerVal();
+	void AddRows();
+	void AddCols();
 };
