View Issue Details

IDProjectCategoryView StatusLast Update
0005568ScribusGraphics / Image Framespublic2007-04-20 19:07
ReporterKonqui Assigned Tofschmid
PrioritynormalSeveritytrivialReproducibilityalways
Status closedResolutionfixed
Platformi386OSDebian LinuxOS Version4.0 (etch)
Product Version1.3.3.8cvs
Fixed in Version1.3.3.9cvs
Summary0005568: eps files are not displayed correctly in scribus
DescriptionImporting a eps graphic into an image frame in scribus leads to a faulty displayed image. I tried the gs variants gs-gpl (8.54.dfsg.1-5) and gs-afpl (8.53-0.2). Both showed the same behaviour. Till scribus-ng (1.3.3.6.dfsg-1) and scribus (1.2.5.dfsg-5+b1) the pdf output was ok and till scribus (1.2.1-1) everything worked fine. The uploaded file is a eps file which isn't displayed correctly by the scribus version 1.3.3.8.dfsg+cvs20070409-2.
Steps To Reproducesee description.
Additional Informationgs and gv are displaying the attached file properly.
TagsNo tags attached.
Patch

Activities

2007-04-18 19:18



Cr-carbinol.eps (80,584 bytes)
Cr-carbinol.eps (80,584 bytes)

plinnell

2007-04-18 19:24

viewer   ~0015941

Please import this via File > Import. It will import as vector and display and print far better. It also will be scaleable.

2007-04-18 19:42




2007-04-18 19:42



scribus-5568.pdf (2,898 bytes)

2007-04-18 19:43




2007-04-18 19:43




plinnell

2007-04-18 20:02

viewer   ~0015942

more testing tell me the generating application might be the issue

malex

2007-04-18 20:32

administrator   ~0015943

Last edited: 2007-04-18 20:42

As the files I just uploaded show there is no problem when the EPS is either imported natively through File>Import>Import EPS/PS (the preferred way) or into an image frame. Output quality from an image frame is worse then from a natively imported eps, which is understandable, but it's visible. One thing I noticed was that the eps inserted into an image frame was at a low zoom level i.e. very small and when "fit to frame" was chosen the image was moved beyond the frame, so it was effectively "invisible" until I used Y position control to move it up. You could be running into that.

2007-04-18 20:32




2007-04-18 20:39



fschmid

2007-04-18 21:46

administrator   ~0015946

Issue with that .eps is fixed now, but that .eps isn't really conforming to the PS and DSC specifications.

malex

2007-04-18 22:21

administrator   ~0015948

Last edited: 2007-04-18 23:16

Konqui,

decrease the zoom level and you'll see your image, move it with Y:Pos. spinbox.

malex

2007-04-20 19:07

administrator   ~0015964

Franz fixed this issue by creating a workaround for such broken bounding box EPS files. I have updated packages in our repository and the original reporter confirmed the fix in 1339cvs. Time to close the issue.

Issue History

Date Modified Username Field Change
2007-04-18 19:18 Konqui New Issue
2007-04-18 19:18 Konqui File Added: Cr-carbinol.eps
2007-04-18 19:24 plinnell Note Added: 0015941
2007-04-18 19:42 malex File Added: kghostview-5569-eps.png
2007-04-18 19:42 malex File Added: scribus-5568.pdf

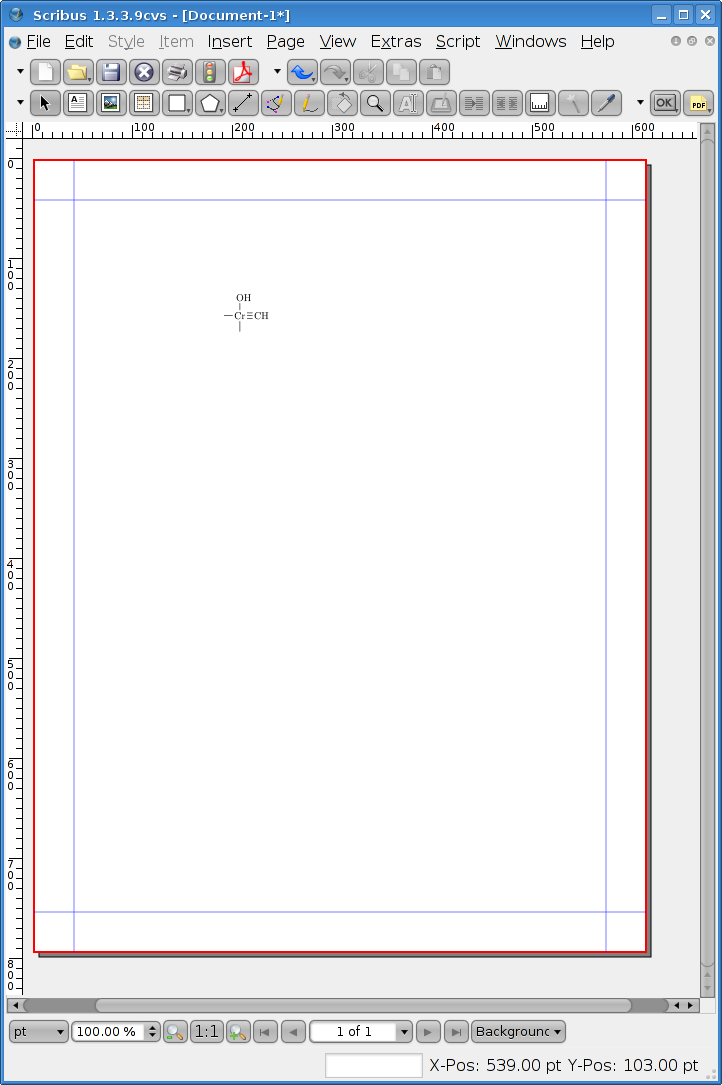

2007-04-18 19:43 malex File Added: scribus-5568-eps.png

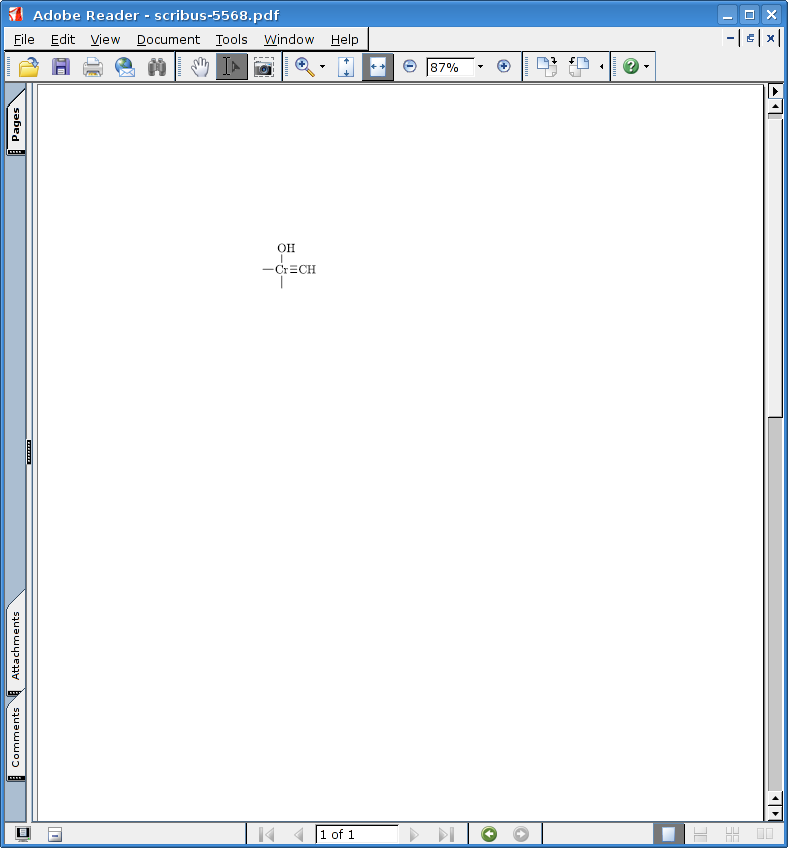

2007-04-18 19:43 malex File Added: acroread-5570-eps_pdf.png
