View Issue Details
ID | Project | Category | View Status | Date Submitted | Last Update |
---|---|---|---|---|---|
0006404 | Scribus | Import / Export | public | 2007-10-23 19:40 | 2008-08-08 19:45 |
Reporter | mariusthart | Assigned To | jghali | ||
Priority | normal | Severity | minor | Reproducibility | have not tried |
Status | closed | Resolution | duplicate | ||
Platform | i386 and amd64 | OS | Windows and Ubuntu | OS Version | XP and 7.10 |
Product Version | 1.3.4 | ||||
Summary | 0006404: Bitmaps embedded in eps-files are displaced when imported | ||||
Description | When importing an eps into Scribus that has embedded bitmaps, the bitmaps are moved to another location. The movement is equal for all bitmaps. | ||||

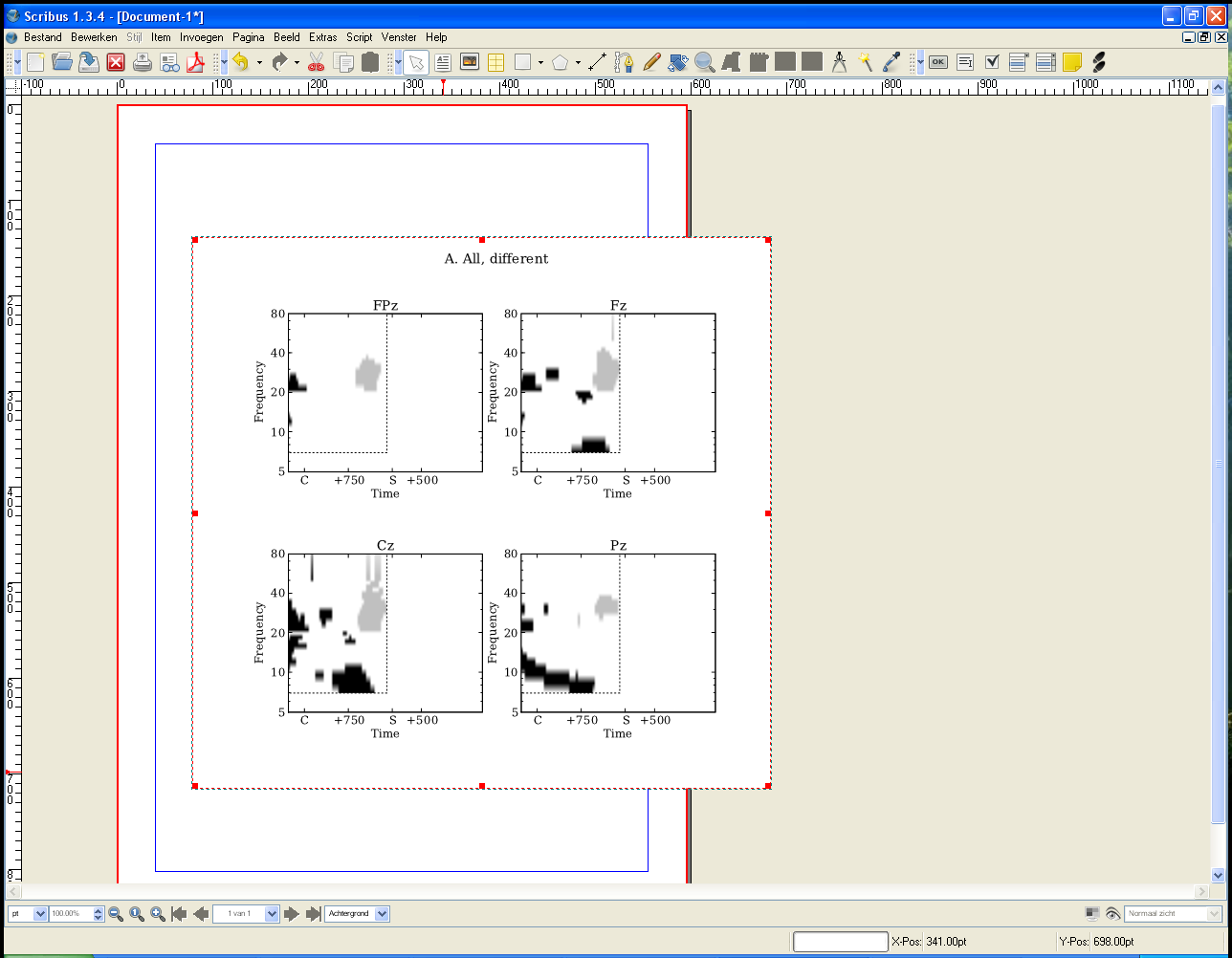

Steps To Reproduce | The eps-files I used were produced by matplotlib using the imshow command to display an 2d array as a grayscale bitmap. (I believe these are embedded as TIFF's.) Immediately after importing these EPS-files, the bitmaps are all located somewhere else than there intended location. The shift is equal for all bitmaps and equal on repeated tries. It happens with all the graphs I produced this way, not just the one in the screenshot attached. | ||||
Additional Information | Importing the eps file in OpenOffice does not have this effect. Printing this to a PDF with PDFcreator or the cups pdf printer results in a perfect PDF. Converting the PDF back to EPS and then importing that EPS yields the same displacement in Scribus. The EPS files look as expected in Ghostview as well. | ||||
Tags | No tags attached. | ||||
Patch | |||||
Date Modified | Username | Field | Change |
---|---|---|---|
2007-10-23 19:40 | mariusthart | New Issue | |
2007-10-23 19:40 | mariusthart | File Added: displaced-eps.png | |
2008-08-08 19:44 | jghali | Note Added: 0020108 | |
2008-08-08 19:44 | jghali | Relationship added | duplicate of 0005649 |
2008-08-08 19:44 | jghali | Duplicate ID | 0 => 5649 |
2008-08-08 19:44 | jghali | Status | new => resolved |
2008-08-08 19:44 | jghali | Resolution | open => duplicate |
2008-08-08 19:44 | jghali | Assigned To | => jghali |
2008-08-08 19:45 | jghali | Status | resolved => closed |
