View Issue Details

IDProjectCategoryView StatusLast Update
0008446ScribusPDFpublic2017-06-12 19:43
Reporterrdebel Assigned Toavox
PrioritynormalSeveritymajorReproducibilityalways
Status assignedResolutionopen
PlatformLaptop 1.4 GHz CentrinoOSDebian unstable/testingOS Version1.3.5.svn
Product Version1.5.0svn
Target Version1.6 milestoneFixed in Version
Summary0008446: Wrong PDF Export of Shadowed and outlined Text with OTF Font
DescriptionText with color white, shadow (blacK) and a small outline is wrong exported, when the font is OTF. Is it normal truetype everthing seems ok.
Steps To ReproduceCreate textframe and insert a "1", size 70pt. Textcolor white. Effect shadow in black, Effect outline (also black). Use an OTF-Font, i choose Fontin Sans OTF.
Then export to pdf. I tried every pdf-Version and profile Printer/Greyscale. It was wrong. Using a TTF-Font like Arial everything was fine.
Additional InformationSee attached files:
Sample Scribus.

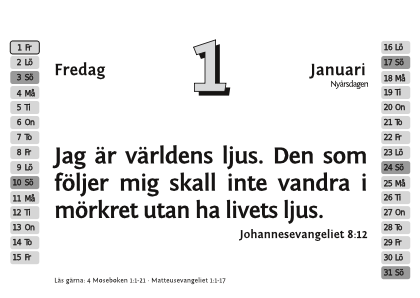

How to look right.png
Wrong export.pdf
Tagsscribusctl
PatchNo

Relationships

related to 0014394 closedjghali text shadow effect incorrectly exported to PDF

Activities

2009-09-21 09:29



Wrong_Export.pdf (70,757 bytes)

2009-09-21 09:29



Scribus_sample.sla.gz (12,734 bytes)

2009-09-21 09:30




rdebel

2009-09-21 09:57

reporter   ~0022505

Last edited: 2009-09-21 10:19

The Problem seems to be using outline. Whithout Outline it seems ok

jghali

2009-09-21 22:31

administrator   ~0022508

Yep, the problem arise when outline is used in combination with shadow. Unfortunately that issue does not seem easy to fix. Possible hack : placing before line 4046 of pdflib_core.cpp the following line :

hl2.setEffects(hl2.effects() & (~ScStyle_Outline));

I gonna set target version for resolution to 1.3.6, but it's not sure we will be able to fix that issue in this version.

avox

2010-01-19 23:22

administrator   ~0023112

jghali: that's the solution I'd propose.

It also appears that some kind of overprint occurs. From the code the sequence is as follows:
1. fill shadow
2. stroke shadow
3. fill normal
4. stroke normal

But 3. doesnt seem to knock out 2.

avox

2010-01-19 23:24

administrator   ~0023113

Reminder sent to: fschmid

Franz, what do you think about the failing knockout in this case?

jghali

2010-01-20 23:31

administrator   ~0023121

The workaround has now been committed in 1.3.6svn and 1.5.0svn. Removing 1.3.6 target. The correct fix we'll be to add ability to subset OpenType fonts in other format than Type3 fonts so we can fill and stroke text directly like with other font formats without resorting to tricks.

Kunda

2015-04-11 02:16

manager   ~0034873

assigned to 1.6 milestone

Kunda

2016-05-29 08:43

manager   ~0041524

Needs to be tested with CTL branch

jghali

2017-06-12 19:43

administrator   ~0044047

The issue is basically fixed for simple CFF based OTF fonts as we can now subset those and produce a subset CFF font. However the issue still exists for CID-Keyed OTF fonts, often fonts used for Asian languages. Currently those fonts are still subset as Type 3 fonts.
