View Issue Details

IDProjectCategoryView StatusLast Update
0009436ScribusStory Editor / Text Framespublic2011-10-05 20:02
Reportercezaryece Assigned Tojghali
PriorityhighSeveritymajorReproducibilityalways
Status closedResolutionfixed
PlatformLinuxOSKubuntuOS VersionLucid
Product Version1.3.8
Target Version1.4.0Fixed in Version1.4.0svn
Summary0009436: wrong text formating - text extend margins or columns

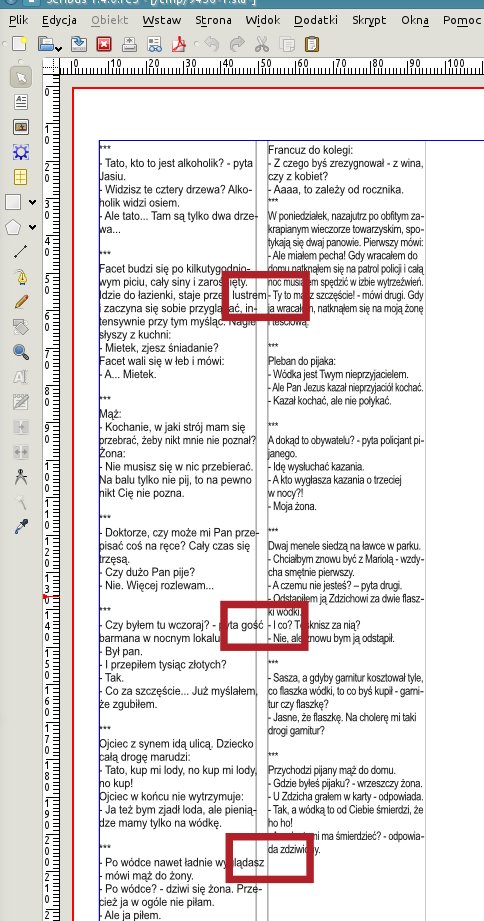

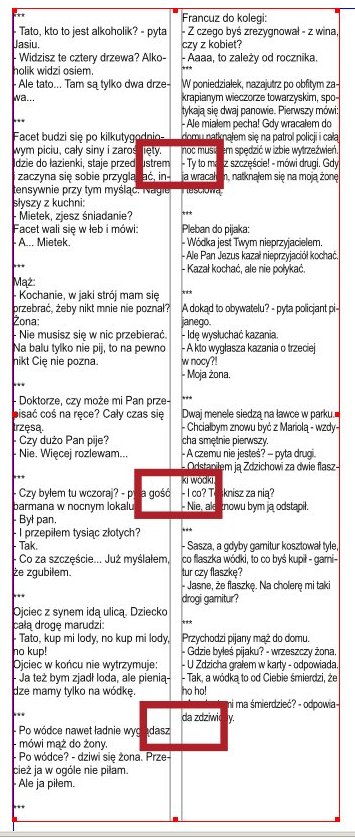

DescriptionSee attached file. With red frames I focus places, where text extending column width.
Its not only one case I see it.
Changing font doesn't matter,only places where it happens change.
I can submit more exaples if you wish.
I notice this issue with 1.5svn too.
Tagstext frames
Patch

Relationships

related to 0008538 closedjghali Text wrap/flow around image frame fails when glyph extension and word tracking are not 100%
related to 0009932 closedjghali First text line does not flow around objects
related to 0010251 closedjghali [PATCH] wrong text formatting issues
has duplicate 0010015 closedjghali Hyphenate with manual hyphen doesn't honor the distance between columns
has duplicate 0005891 closedjghali Various settings of work tracking and glyph extension make text overlap in column gap
related to 0009902 closedcbradney Font letters spoiled when using text flow around frame

Activities

cezaryece

2010-10-25 06:19

developer

9436.sla (34,215 bytes)

cezaryece

2010-10-25 06:25

developer   ~0024724

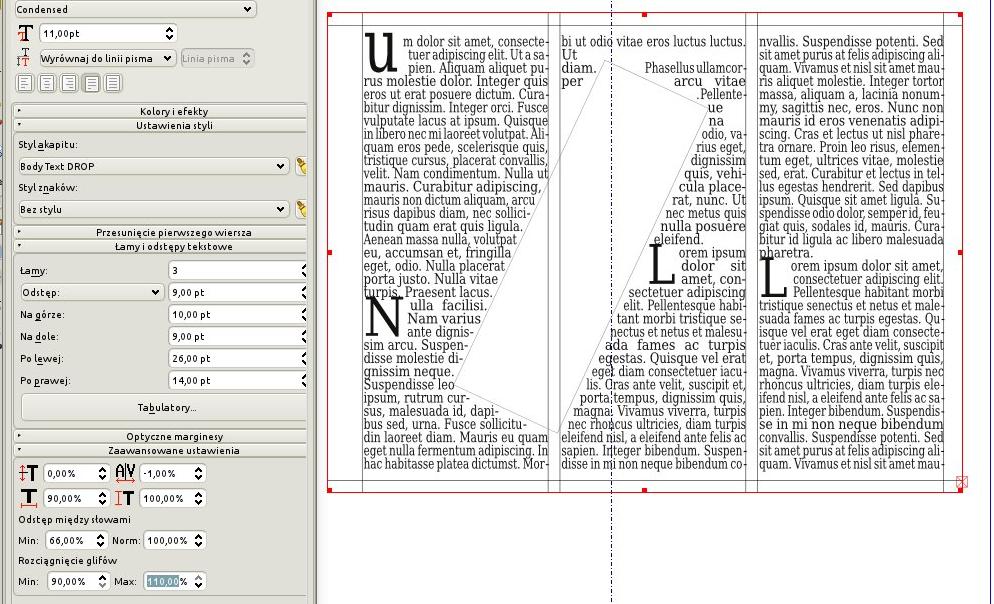

It often happens for text horizontally scaling 90% and below and with Min. Glyph Extension below 100%.

cezaryece

2010-10-25 11:10

developer

Dokument-2.sla (27,250 bytes)

cezaryece

2010-10-25 11:13

developer

Dokument-2-1.5svn.sla (27,270 bytes)

cezaryece

2010-10-25 11:15

developer

Dokument-1.3.9svn.sla (19,630 bytes)

tenbear

2010-11-29 23:36

reporter   ~0024925

I can verify that this happens with Windows 7 x64 and Windows Vista using V1.3.8. As the Glyph Extension is reduced the problem gets worse.

cezaryece

2010-11-30 06:54

developer   ~0024928

I notice also that some right distance from frame edge make this bug appears without touching Glyph Extention.

cezaryece

2011-05-27 09:50

developer


cezaryece

2011-06-01 08:30

developer   ~0026298

No... to fast I was upload my patch. It is not complete, please delete it.

ale

2011-06-01 11:34

manager   ~0026299

removed

cezaryece

2011-06-01 12:44

developer

wrong_formating.patch (5,045 bytes)
Index: Version135/Scribus/scribus/pageitem_textframe.cpp
===================================================================
--- Version135/Scribus/scribus/pageitem_textframe.cpp	(wersja 16630)
+++ Version135/Scribus/scribus/pageitem_textframe.cpp	(kopia robocza)
@@ -425,7 +425,7 @@
 	/// called when a possible break is passed
 	void rememberBreak(int index, double pos)
 	{
-		if (pos > colRight)
+		if (pos > colRight - insets.Right)
 		{
 			// only look for the first break behind the right edge
 			maxShrink = 0;
@@ -439,7 +439,7 @@
 				if (newLooseness >= oldLooseness)
 					return;
 			}
-			breakXPos = colRight;
+			breakXPos = colRight - insets.Right;
 		}
 		else
 		{
@@ -520,9 +520,10 @@

 		// if we aren't restricted further, we'll end at this maxX:
 		double maxX = colRight - morespace;
-		if (legacy) maxX -= (lineCorr + insets.Right);
+		if (legacy)
+			maxX -= (lineCorr + insets.Right);

-		double StartX = floor(qMax(line.x, qMin(colRight,breakXPos) - 1));
+		double StartX = floor(qMax(line.x, qMin(maxX, breakXPos)));
 		int xPos  = static_cast<int>(ceil(maxX + insets.Right));
 		int yDesc = static_cast<int>(yPos+line.descent);
 		int yAsc  = static_cast<int>(ceil(yPos-line.ascent));
@@ -542,7 +543,7 @@
 		// if the intersection only has 1 rectangle, then nothing gets in the way
 		if (lineI.numRects() == 1)
 		{
-			int xPos = qRound(ceil(StartX + 0.125 + insets.Right));
+			int xPos = qRound(ceil(StartX + insets.Right));
 			pt12.setX(xPos);
 			pt22.setX(xPos);
 			if (shape.contains(pf2.map(pt12)) && shape.contains(pf2.map(pt22)))
@@ -570,6 +571,7 @@
 			qDebug()<<EndX<<EndX2<<StartX<<maxX;
 			qDebug()<<"DIFFERING ENDX!!!!!";
 		}*/
+
 		return EndX2;
 	}

@@ -746,8 +748,6 @@

 	double glyphNatural = 0;
 	double spaceNatural = 0;
-	double glyphExtension;
-	double spaceExtension;

 	const ParagraphStyle& style(itemText.paragraphStyle(line.firstItem));

@@ -764,29 +764,37 @@
 		}
 	}

-	// decision: prio 1: stretch glyph;  prio 2: stretch spaces
+	double glyphExtension = 0;
+	double spaceExtension = 0;
+
+	if (line.width < glyphNatural + spaceNatural) //stretch
+		glyphExtension = qMax(line.width / (glyphNatural + spaceNatural), style.minGlyphExtension());
+	else //expand
+		glyphExtension = qMin(1 + (line.width / (glyphNatural + spaceNatural)), style.maxGlyphExtension());
+	if (spaceNatural > 0)
+		spaceExtension = (line.width - glyphNatural * glyphExtension ) / spaceNatural  - 1;
+
+//	// decision: prio 1: stretch glyph;  prio 2: stretch spaces
+//	double minGE = style.minGlyphExtension();
+//	if (line.width < spaceNatural + glyphNatural * minGE && spaceNatural > 0)
+//	{
+//		glyphExtension = style.minGlyphExtension() - 1;
+//		spaceExtension = (line.width - glyphNatural * (1+glyphExtension) ) / spaceNatural  - 1;
+//	}
+//	else if (line.width < spaceNatural + glyphNatural * style.maxGlyphExtension() && glyphNatural > 0)
+//	{
+//		spaceExtension = 0;
+//		glyphExtension = (line.width - spaceNatural) / glyphNatural  - 1;
+//	}
+//	else
+//	{
+//		glyphExtension = style.minGlyphExtension() - 1;
+//		if (spaceNatural > 0)
+//			spaceExtension = (line.width - glyphNatural * (1+glyphExtension) ) / spaceNatural  - 1;
+//		else
+//			spaceExtension = 0;
+//	}

-	if (line.width < spaceNatural + glyphNatural * style.minGlyphExtension() && spaceNatural > 0)
-	{
-		glyphExtension = style.minGlyphExtension() - 1;
-		spaceExtension = (line.width - glyphNatural * (1+glyphExtension) ) / spaceNatural  - 1;
-	}
-	else if (line.width < spaceNatural + glyphNatural * style.maxGlyphExtension() && glyphNatural > 0)
-	{
-		spaceExtension = 0;
-		glyphExtension = (line.width - spaceNatural) / glyphNatural  - 1;
-	}
-	else
-	{
-		glyphExtension = style.maxGlyphExtension() - 1;
-		if (spaceNatural > 0)
-			spaceExtension = (line.width - glyphNatural * (1+glyphExtension) ) / spaceNatural  - 1;
-		else
-			spaceExtension = 0;
-	}
-
-	double glyphScale = 1 + glyphExtension;
-
 /*
 	qDebug() << QString("justify: line = %7 natural = %1 + %2 = %3 (%4); spaces + %5%%; min=%8; glyphs + %6%%; min=%9")
 		   .arg(spaceNatural).arg(glyphNatural).arg(spaceNatural+glyphNatural).arg(line.naturalWidth)
@@ -800,12 +808,12 @@
 		double wide = itemText.item(yof)->glyph.wide();
 		if (!SpecialChars::isExpandingSpace(itemText.text(yof)))
 		{
-			itemText.item(yof)->glyph.last()->xadvance += wide * glyphExtension;
+			itemText.item(yof)->glyph.last()->xadvance += wide * (glyphExtension -1);
 			GlyphLayout* glyph = &(itemText.item(yof)->glyph);
 			while (glyph)
 			{
-				glyph->xoffset *= glyphScale;
-				glyph->scaleH *= glyphScale;
+				glyph->xoffset *= glyphExtension;
+				glyph->scaleH *= glyphExtension;
 				glyph = glyph->more;
 			}
 		}
@@ -820,7 +828,8 @@
 /// called when linelength is known and line is not justified
 static void indentLine(StoryText& itemText, LineSpec& line, double leftIndent)
 {
-	if (line.naturalWidth > line.width)
+	//it is hack, but works well
+	if (line.naturalWidth + 0.125 >= line.width)
 	{
 		justifyLine(itemText, line);
 	}
wrong_formating.patch (5,045 bytes)

cezaryece

2011-06-01 12:45

developer


cezaryece

2011-06-01 12:48

developer   ~0026301

Seems I done that!!!
Really really hope this!!!

Review my patch, please, deeply.

Still remains issue with overflow and margin areas... next time.

cezaryece

2011-06-02 11:15

developer

wrong_formating_overflow.patch (13,196 bytes)
Index: Version135/Scribus/scribus/pageitem_textframe.cpp
===================================================================
--- Version135/Scribus/scribus/pageitem_textframe.cpp	(wersja 16630)
+++ Version135/Scribus/scribus/pageitem_textframe.cpp	(kopia robocza)
@@ -126,8 +126,12 @@
 	return  res;
 }

-QRegion PageItem_TextFrame::availableRegion(QRegion clip)
+QRegion PageItem_TextFrame::availableRegion(QRegion clip, QRegion * unavaiable)
 {
+	//hack to get empty unavaiable region
+	//on call unavaible = clip
+	if (unavaiable->xored(Clip).isEmpty())
+		unavaiable->setRects(NULL,0);
 	QRegion result(clip);
 	if (!isEmbedded)
 	{
@@ -156,7 +160,9 @@
 						continue;
 					if (docItem->textFlowAroundObject())
 					{
-						result = result.subtract(itemShape(docItem, Mp->xOffset() - Dp->xOffset(), Mp->yOffset() - Dp->yOffset()));
+						result = result.subtracted(itemShape(docItem, Mp->xOffset() - Dp->xOffset(), Mp->yOffset() - Dp->yOffset()));
+						if (unavaiable)
+							unavaiable->united(itemShape(docItem, Mp->xOffset() - Dp->xOffset(), Mp->yOffset() - Dp->yOffset()));
 					}
 					if (docItem->isGroupControl)
 						currentGroup = docItem->Groups.top();
@@ -192,7 +198,11 @@
 					if ((currentGroup != -1) && (docItem->Groups.count() != 0) && (currentGroup == docItem->Groups.top()))
 						continue;
 					if (docItem->textFlowAroundObject())
-						result = result.subtract(itemShape(docItem, 0, 0));
+					{
+						result = result.subtracted(itemShape(docItem, 0, 0));
+						if (unavaiable)
+							unavaiable->united(itemShape(docItem, 0, 0));
+					}
 					if (docItem->isGroupControl)
 						currentGroup = docItem->Groups.top();
 				}
@@ -425,7 +435,7 @@
 	/// called when a possible break is passed
 	void rememberBreak(int index, double pos)
 	{
-		if (pos > colRight)
+		if (pos > colRight - insets.Right)
 		{
 			// only look for the first break behind the right edge
 			maxShrink = 0;
@@ -439,7 +449,7 @@
 				if (newLooseness >= oldLooseness)
 					return;
 			}
-			breakXPos = colRight;
+			breakXPos = colRight - insets.Right;
 		}
 		else
 		{
@@ -520,9 +530,10 @@

 		// if we aren't restricted further, we'll end at this maxX:
 		double maxX = colRight - morespace;
-		if (legacy) maxX -= (lineCorr + insets.Right);
+		if (legacy)
+			maxX -= (lineCorr + insets.Right);

-		double StartX = floor(qMax(line.x, qMin(colRight,breakXPos) - 1));
+		double StartX = floor(qMax(line.x, qMin(maxX, breakXPos)));
 		int xPos  = static_cast<int>(ceil(maxX + insets.Right));
 		int yDesc = static_cast<int>(yPos+line.descent);
 		int yAsc  = static_cast<int>(ceil(yPos-line.ascent));
@@ -542,7 +553,7 @@
 		// if the intersection only has 1 rectangle, then nothing gets in the way
 		if (lineI.numRects() == 1)
 		{
-			int xPos = qRound(ceil(StartX + 0.125 + insets.Right));
+			int xPos = qRound(ceil(StartX + insets.Right));
 			pt12.setX(xPos);
 			pt22.setX(xPos);
 			if (shape.contains(pf2.map(pt12)) && shape.contains(pf2.map(pt22)))
@@ -570,6 +581,7 @@
 			qDebug()<<EndX<<EndX2<<StartX<<maxX;
 			qDebug()<<"DIFFERING ENDX!!!!!";
 		}*/
+
 		return EndX2;
 	}

@@ -734,8 +746,9 @@
 private:
 	double frameWidth;
 	double frameHeight;
+	double lineCorr;
+public:
 	MarginStruct insets;
-	double lineCorr;
 };


@@ -746,8 +759,6 @@

 	double glyphNatural = 0;
 	double spaceNatural = 0;
-	double glyphExtension;
-	double spaceExtension;

 	const ParagraphStyle& style(itemText.paragraphStyle(line.firstItem));

@@ -764,29 +775,37 @@
 		}
 	}

-	// decision: prio 1: stretch glyph;  prio 2: stretch spaces
+	double glyphExtension = 0;
+	double spaceExtension = 0;
+
+	if (line.width < glyphNatural + spaceNatural) //stretch
+		glyphExtension = qMax(line.width / (glyphNatural + spaceNatural), style.minGlyphExtension());
+	else //expand
+		glyphExtension = qMin(1 + (line.width / (glyphNatural + spaceNatural)), style.maxGlyphExtension());
+	if (spaceNatural > 0)
+		spaceExtension = (line.width - glyphNatural * glyphExtension ) / spaceNatural  - 1;
+
+//	// decision: prio 1: stretch glyph;  prio 2: stretch spaces
+//	double minGE = style.minGlyphExtension();
+//	if (line.width < spaceNatural + glyphNatural * minGE && spaceNatural > 0)
+//	{
+//		glyphExtension = style.minGlyphExtension() - 1;
+//		spaceExtension = (line.width - glyphNatural * (1+glyphExtension) ) / spaceNatural  - 1;
+//	}
+//	else if (line.width < spaceNatural + glyphNatural * style.maxGlyphExtension() && glyphNatural > 0)
+//	{
+//		spaceExtension = 0;
+//		glyphExtension = (line.width - spaceNatural) / glyphNatural  - 1;
+//	}
+//	else
+//	{
+//		glyphExtension = style.minGlyphExtension() - 1;
+//		if (spaceNatural > 0)
+//			spaceExtension = (line.width - glyphNatural * (1+glyphExtension) ) / spaceNatural  - 1;
+//		else
+//			spaceExtension = 0;
+//	}

-	if (line.width < spaceNatural + glyphNatural * style.minGlyphExtension() && spaceNatural > 0)
-	{
-		glyphExtension = style.minGlyphExtension() - 1;
-		spaceExtension = (line.width - glyphNatural * (1+glyphExtension) ) / spaceNatural  - 1;
-	}
-	else if (line.width < spaceNatural + glyphNatural * style.maxGlyphExtension() && glyphNatural > 0)
-	{
-		spaceExtension = 0;
-		glyphExtension = (line.width - spaceNatural) / glyphNatural  - 1;
-	}
-	else
-	{
-		glyphExtension = style.maxGlyphExtension() - 1;
-		if (spaceNatural > 0)
-			spaceExtension = (line.width - glyphNatural * (1+glyphExtension) ) / spaceNatural  - 1;
-		else
-			spaceExtension = 0;
-	}
-
-	double glyphScale = 1 + glyphExtension;
-
 /*
 	qDebug() << QString("justify: line = %7 natural = %1 + %2 = %3 (%4); spaces + %5%%; min=%8; glyphs + %6%%; min=%9")
 		   .arg(spaceNatural).arg(glyphNatural).arg(spaceNatural+glyphNatural).arg(line.naturalWidth)
@@ -800,12 +819,12 @@
 		double wide = itemText.item(yof)->glyph.wide();
 		if (!SpecialChars::isExpandingSpace(itemText.text(yof)))
 		{
-			itemText.item(yof)->glyph.last()->xadvance += wide * glyphExtension;
+			itemText.item(yof)->glyph.last()->xadvance += wide * (glyphExtension -1);
 			GlyphLayout* glyph = &(itemText.item(yof)->glyph);
 			while (glyph)
 			{
-				glyph->xoffset *= glyphScale;
-				glyph->scaleH *= glyphScale;
+				glyph->xoffset *= glyphExtension;
+				glyph->scaleH *= glyphExtension;
 				glyph = glyph->more;
 			}
 		}
@@ -820,7 +839,8 @@
 /// called when linelength is known and line is not justified
 static void indentLine(StoryText& itemText, LineSpec& line, double leftIndent)
 {
-	if (line.naturalWidth > line.width)
+	//it is hack, but works well
+	if (line.naturalWidth + 0.125 >= line.width)
 	{
 		justifyLine(itemText, line);
 	}
@@ -916,9 +936,22 @@
 }


+void PageItem_TextFrame::checkInsets(QRegion * c, QPoint p, LineControl * current, MarginStruct * extra)
+{
+	//if point is in unavailable region
+	//right and left text distances should not working
+	if ( !c->isEmpty() && c->contains(p))
+	{
+		extra->Left = current->insets.Left = 0;
+		extra->Right = current->insets.Left = -1; //should be 0, but these value works better
+	}
+	else
+	{
+		extra->Left = current->insets.Left = Extra;
+		extra->Right = current->insets.Right = RExtra;
+	}
+}

-
-
 void PageItem_TextFrame::layout()
 {
 // 	qDebug()<<"==Layout==" << itemName() ;
@@ -1015,14 +1048,16 @@
 	setShadow();
 	if ((itemText.length() != 0)) // || (NextBox != 0))
 	{
-		// determine layout area
-		QRegion cl = availableRegion(QRegion(pf2.map(Clip)));
+		// determine layout area and unavaiable area
+		//hack to set pointer to clNA (cl Not Avaiable) region
+		//without it clNA was unset
+		QRegion clNA = QRegion(pf2.map(Clip));
+		QRegion cl = availableRegion(QRegion(pf2.map(Clip)), &clNA);
 		if (cl.isEmpty())
 		{
 			MaxChars = firstInFrame();
 			goto NoRoom;
 		}
-
 		if (imageFlippedH())
 		{
 			pf2.translate(Width, 0);
@@ -1075,6 +1110,7 @@
 		MaxChars = 0;
 		for (int a = firstInFrame(); a < itemText.length(); ++a)
 		{
+			checkInsets(&clNA, pf2.map(QPoint(static_cast<int>(ceil(current.xPos)), static_cast<int>(current.yPos))), &current, &extra);
 			hl = itemText.item(a);
 			if (a > 0 && itemText.text(a-1) == SpecialChars::PARSEP)
 				style = itemText.paragraphStyle(a);
@@ -1422,10 +1458,14 @@
 //				qDebug() << QString("linestart: %1 + %2 + %3 < %4").arg(current.xPos).arg(wide).arg(style.rightMargin()).arg(current.colRight);
 				double leftIndent = 0;
 				double xStep = legacy? 1 : 0.125;
-				while (!cl.contains(pf2.map(pt1)) || !cl.contains(pf2.map(pt2)) || current.isEndOfLine(wide + leftIndent + style.rightMargin()))
+				while (!cl.contains(pf2.map(pt1)) || !cl.contains(pf2.map(pt2)))
 				{
+					checkInsets(&clNA, pf2.map(QPoint(static_cast<int>(ceil(current.xPos)), static_cast<int>(current.yPos))), &current, &extra);
+					if (!current.isEndOfLine(wide + leftIndent + style.rightMargin()))
+						break;
 					fBorder = true;
 					current.xPos += xStep;
+					checkInsets(&clNA, pf2.map(QPoint(static_cast<int>(ceil(current.xPos)), static_cast<int>(current.yPos))), &current, &extra);
 					if (current.isEndOfLine(wide + leftIndent + style.rightMargin()))
 					{
 //						qDebug() << QString("eocol %5? %1 + %2 + %3 + %4").arg(current.yPos).arg(current.startOfCol).arg(style.lineSpacingMode() == ParagraphStyle::BaselineGridLineSpacing).arg(style.lineSpacing()).arg(current.column);
@@ -1650,6 +1690,7 @@
 			}

 			// test if end of line reached
+			checkInsets(&clNA, pf2.map(QPoint(static_cast<int>(ceil(current.xPos)), static_cast<int>(current.yPos))), &current, &extra);
 			if ((!cl.contains(pf2.map(pt1))) || (!cl.contains(pf2.map(pt2))) || (legacy && current.isEndOfLine(style.rightMargin())))
 				outs = true;
 			if (current.isEndOfCol())
@@ -1776,6 +1817,7 @@
 				{
 					// find end of line
 					current.breakLine(itemText, style, firstLineOffset(), a);
+					checkInsets(&clNA, pf2.map(QPoint(static_cast<int>(ceil(current.xPos)), static_cast<int>(current.yPos))), &current, &extra);
 					EndX = current.endOfLine(cl, pf2, style.rightMargin());
 					current.finishLine(EndX);

@@ -1845,6 +1887,7 @@

 						current.updateHeightMetrics(itemText);
 						current.updateLineOffset(itemText, style, firstLineOffset());
+						checkInsets(&clNA, pf2.map(QPoint(static_cast<int>(ceil(current.xPos)), static_cast<int>(current.yPos))), &current, &extra);
 						EndX = current.endOfLine(cl, pf2, style.rightMargin());
 						current.finishLine(EndX);

@@ -1928,6 +1971,7 @@
 //						qDebug() << QString("style nb @%6: %1 -- %2, %4/%5 char: %3").arg(style.leftMargin()).arg(style.rightMargin())
 //							   .arg(style.charStyle().asString()).arg(style.name()).arg(style.parent())
 //							   .arg(a);
+						checkInsets(&clNA, pf2.map(QPoint(static_cast<int>(ceil(current.xPos)), static_cast<int>(current.yPos))), &current, &extra);
 						EndX = current.endOfLine(cl, pf2, style.rightMargin());
 						current.finishLine(EndX);
 //						qDebug() << QString("no break pos: %1-%2 @ %3 wid %4 nat %5 endX %6")
@@ -1938,6 +1982,7 @@
 				}
 				if ( outs || SpecialChars::isBreak(hl->ch, (Cols > 1)) )
 				{
+					checkInsets(&clNA, pf2.map(QPoint(static_cast<int>(ceil(current.xPos)), static_cast<int>(current.yPos))), &current, &extra);
 					if (outs && !current.isEndOfLine(hl->glyph.wide() + style.rightMargin()))
 					{
 						if (( hl->ch == SpecialChars::PARSEP || hl->ch == SpecialChars::LINEBREAK)
@@ -1950,8 +1995,10 @@
 						}
 						bool fromOut = true;
 						double BotOffset = desc+extra.Bottom+lineCorr;
+						checkInsets(&clNA, pf2.map(QPoint(static_cast<int>(ceil(current.xPos)), static_cast<int>(current.yPos))), &current, &extra);
 						while (!current.isEndOfLine(style.rightMargin()))
 						{
+							checkInsets(&clNA, pf2.map(QPoint(static_cast<int>(ceil(current.xPos)), static_cast<int>(current.yPos))), &current, &extra);
 							current.xPos++;
 							if (current.isEndOfLine(style.rightMargin()))
 							{
@@ -2132,6 +2179,7 @@
 		int a = itemText.length()-1;
 		hl = a >=0 ? itemText.item(a) : NULL;
 		current.breakLine(itemText, style, firstLineOffset(), a);
+		checkInsets(&clNA, pf2.map(QPoint(static_cast<int>(ceil(current.xPos)), static_cast<int>(current.yPos))), &current, &extra);
 		EndX = current.endOfLine(cl, pf2, style.rightMargin());
 		current.finishLine(EndX);

Index: Version135/Scribus/scribus/pageitem_textframe.h
===================================================================
--- Version135/Scribus/scribus/pageitem_textframe.h	(wersja 16630)
+++ Version135/Scribus/scribus/pageitem_textframe.h	(kopia robocza)
@@ -32,6 +32,8 @@

 class ScPainter;
 class ScribusDoc;
+struct MarginStruct;
+struct LineControl;

 #include "text/nlsconfig.h"

@@ -85,7 +87,7 @@
 	void drawOverflowMarker(ScPainter *p);
 	void drawUnderflowMarker(ScPainter *p);
 	void drawColumnBorders(ScPainter *p);
-	QRegion availableRegion(QRegion clip);
+	QRegion availableRegion(QRegion clip, QRegion * unavaiable);

 #ifdef NLS_PROTO
 	void DrawLineItem(ScPainter *p, double width,
@@ -103,7 +105,7 @@

 private:
 	bool cursorBiasBackward;
-
+	void checkInsets(QRegion * c, QPoint p, LineControl * current, MarginStruct * extra);
 	void setShadow();
 	void restoreTextSelection(int selStart, int selLength);
 	QString currentShadow;
wrong_formating_overflow.patch (13,196 bytes)

cezaryece

2011-06-02 11:19

developer   ~0026303

wrong_formating_overflow.patch solves also https://bugs.scribus.net/view.php?id=9779 [ 9779: Compounding column margin /w image contour ]

It is maybe not perfect, sometimes one char still can jump out of available area, but Scribus works with that patch meaningful better.

cbradney

2011-06-02 14:56

administrator   ~0026304

Setting 1.4.0 target now we have a patch. avox, please review. thanks

cbradney

2011-06-02 14:56

administrator   ~0026305

Thanks Cezaryece!

cezaryece

2011-06-06 09:26

developer   ~0026323

Last edited: 2011-06-06 09:47

Not good... after patch formatting lines with DropCap is broken when some other frame with text overflowing is placed at top on whole column width and DropCap is in first line below it.

Work in progress...

cezaryece

2011-06-07 06:46

developer   ~0026334

My first patch fixing issue with text extending available area is working well (issue almost fixed) and is ready for commit.

Second patch for with try of solving issue with adding text margins to overflow area is not working...

cezaryece

2011-06-08 13:58

developer   ~0026341

Add also 0005891 as duplicate of...

cezaryece

2011-06-14 13:26

developer


cezaryece

2011-06-14 13:28

developer   ~0026393

Last edited: 2011-06-14 13:31

Seems I am at the end of that difficult road... Proof in attached solved2.jpd, which you can compare with also attached Document-1.sla
Don`t upload patch yet because I must to do some cleaning of code.
Stay in touch...

cezaryece

2011-06-14 13:29

developer

Dokument-1.sla (30,621 bytes)

cezaryece

2011-06-14 18:59

developer

wrong_formating_overflow_v2.patch (10,573 bytes)
Index: Version135/Scribus/scribus/pageitem_textframe.cpp
===================================================================
--- Version135/Scribus/scribus/pageitem_textframe.cpp	(wersja 16641)
+++ Version135/Scribus/scribus/pageitem_textframe.cpp	(kopia robocza)
@@ -155,9 +155,7 @@
 					if ((currentGroup != -1) && (docItem->Groups.count() != 0) && (currentGroup == docItem->Groups.top()))
 						continue;
 					if (docItem->textFlowAroundObject())
-					{
-						result = result.subtract(itemShape(docItem, Mp->xOffset() - Dp->xOffset(), Mp->yOffset() - Dp->yOffset()));
-					}
+						result = result.subtracted(itemShape(docItem, Mp->xOffset() - Dp->xOffset(), Mp->yOffset() - Dp->yOffset()));
 					if (docItem->isGroupControl)
 						currentGroup = docItem->Groups.top();
 				}
@@ -192,7 +190,7 @@
 					if ((currentGroup != -1) && (docItem->Groups.count() != 0) && (currentGroup == docItem->Groups.top()))
 						continue;
 					if (docItem->textFlowAroundObject())
-						result = result.subtract(itemShape(docItem, 0, 0));
+						result = result.subtracted(itemShape(docItem, 0, 0));
 					if (docItem->isGroupControl)
 						currentGroup = docItem->Groups.top();
 				}
@@ -522,7 +520,7 @@
 		double maxX = colRight - morespace;
 		if (legacy) maxX -= (lineCorr + insets.Right);

-		double StartX = floor(qMax(line.x, qMin(colRight,breakXPos) - 1));
+		double StartX = floor(qMax(line.x, qMin(maxX,breakXPos-maxShrink))-1);
 		int xPos  = static_cast<int>(ceil(maxX + insets.Right));
 		int yDesc = static_cast<int>(yPos+line.descent);
 		int yAsc  = static_cast<int>(ceil(yPos-line.ascent));
@@ -560,7 +558,7 @@
 		double Interval = 0.125;
 		do {
 			EndX2 += Interval;
-			int xPos = qRound(ceil(EndX2 + insets.Right));
+			int xPos = qRound(ceil(EndX2));
 			pt12.setX (xPos);
 			pt22.setX (xPos);
 		} while ((EndX2 < maxX) && shape.contains(pf2.map(pt12)) && shape.contains(pf2.map(pt22)));
@@ -1420,6 +1418,17 @@
 				// find linelength:
 				pt1 = QPoint(static_cast<int>(ceil(current.xPos)), static_cast<int>(current.yPos+BotOffset));
 				pt2 = QPoint(static_cast<int>(ceil(current.xPos)), static_cast<int>(ceil(current.yPos-TopOffset)));
+				while (current.xPos < current.colRight)
+				{
+					if (!cl.contains(pf2.map(pt1)) || !cl.contains(pf2.map(pt2)))
+					{
+						current.xPos += 0.125;
+						pt1.setX(static_cast<int>(ceil(current.xPos)));
+						pt2.setX(static_cast<int>(ceil(current.xPos)));
+					}
+					else break;
+				}
+				// find linelength:
 				// increase pt1/pt2 until i-beam reaches end of line
 //				qDebug() << QString("linestart: %1 + %2 + %3 < %4").arg(current.xPos).arg(wide).arg(style.rightMargin()).arg(current.colRight);
 				double leftIndent = 0;
@@ -1631,24 +1640,24 @@
 			{
 				if (hl->effects() & ScStyle_HyphenationPossible || hl->ch == SpecialChars::SHYPHEN)
 				{
-					pt1 = QPoint(qRound(ceil(current.xPos+extra.Right - current.maxShrink + charStyle.font().charWidth('-', charStyle.fontSize() / 10.0) * (charStyle.scaleH() / 1000.0))), qRound(current.yPos+desc));
-					pt2 = QPoint(qRound(ceil(current.xPos+extra.Right - current.maxShrink + charStyle.font().charWidth('-', charStyle.fontSize() / 10.0) * (charStyle.scaleH() / 1000.0))), qRound(ceil(current.yPos-asce)));
+					pt1 = QPoint(qRound(ceil(current.xPos - current.maxShrink + charStyle.font().charWidth('-', charStyle.fontSize() / 10.0) * (charStyle.scaleH() / 1000.0))), qRound(current.yPos+desc));
+					pt2 = QPoint(qRound(ceil(current.xPos - current.maxShrink + charStyle.font().charWidth('-', charStyle.fontSize() / 10.0) * (charStyle.scaleH() / 1000.0))), qRound(ceil(current.yPos-asce)));
 				}
 				else
 				{
-					pt1 = QPoint(qRound(ceil(current.xPos+extra.Right - current.maxShrink )), qRound(current.yPos+desc));
-					pt2 = QPoint(qRound(ceil(current.xPos+extra.Right - current.maxShrink )), qRound(ceil(current.yPos-asce)));
+					pt1 = QPoint(qRound(ceil(current.xPos - current.maxShrink )), qRound(current.yPos+desc));
+					pt2 = QPoint(qRound(ceil(current.xPos - current.maxShrink )), qRound(ceil(current.yPos-asce)));
 				}
 			}
 			else if (!legacy && SpecialChars::isBreakingSpace(hl->ch))
 			{
-				pt1 = QPoint(qRound(ceil(breakPos + extra.Right - current.maxShrink )), qRound(current.yPos+desc));
-				pt2 = QPoint(qRound(ceil(breakPos + extra.Right - current.maxShrink )), qRound(ceil(current.yPos-asce)));
+				pt1 = QPoint(qRound(ceil(breakPos - current.maxShrink )), qRound(current.yPos+desc));
+				pt2 = QPoint(qRound(ceil(breakPos - current.maxShrink )), qRound(ceil(current.yPos-asce)));
 			}
 			else
 			{
-				pt1 = QPoint(qRound(ceil(current.xPos+extra.Right - current.maxShrink)), qRound(current.yPos+desc));
-				pt2 = QPoint(qRound(ceil(current.xPos+extra.Right - current.maxShrink)), qRound(ceil(current.yPos-asce)));
+				pt1 = QPoint(qRound(ceil(current.xPos - current.maxShrink)), qRound(current.yPos+desc));
+				pt2 = QPoint(qRound(ceil(current.xPos - current.maxShrink)), qRound(ceil(current.yPos-asce)));
 			}

 			// test if end of line reached
@@ -1728,7 +1737,6 @@
 //				qDebug() << QString("dropcapoffset: %1 -> %2").arg(current.xPos-style.dropCapOffset()).arg(current.xPos);
 				current.xPos = qMax(current.xPos, current.colLeft);
 				maxDX = current.xPos;
-				QPolygon tcli(4);
 				if (style.lineSpacingMode() == ParagraphStyle::BaselineGridLineSpacing)
 				{
 					current.yPos -= m_Doc->typographicSettings.valueBaseGrid * (DropLines-1);
@@ -1739,9 +1747,6 @@
 					int ol2 = static_cast<int>(ol1 / m_Doc->typographicSettings.valueBaseGrid);
 //					qDebug() << QString("baseline adjust after dropcaps: y=%1->%2").arg(current.yPos).arg(ceil(  ol2 / 10000.0 ) * m_Doc->typographicSettings.valueBaseGrid + m_Doc->typographicSettings.offsetBaseGrid - by);
 					current.yPos = ceil(  ol2 / 10000.0 ) * m_Doc->typographicSettings.valueBaseGrid + m_Doc->typographicSettings.offsetBaseGrid - by;
-					//FIXME: use current.colLeft instead of xOffset?
-					tcli.setPoint(0, QPoint(qRound(hl->glyph.xoffset), qRound(maxDY-DropLines*m_Doc->typographicSettings.valueBaseGrid)));
-					tcli.setPoint(1, QPoint(qRound(maxDX), qRound(maxDY-DropLines*m_Doc->typographicSettings.valueBaseGrid)));
 				}
 				else
 				{
@@ -1749,25 +1754,14 @@
 					{
 						current.yPos -= style.lineSpacing() * (DropLines-1);
 //						qDebug() << QString("after dropcaps: y=%1").arg(current.yPos);
-						tcli.setPoint(0, QPoint(qRound(hl->glyph.xoffset), qRound(maxDY - DropLines * style.lineSpacing())));
-						tcli.setPoint(1, QPoint(qRound(maxDX), qRound(maxDY-DropLines*style.lineSpacing())));
 					}
 					else
 					{
 						double currasce = charStyle.font().height(style.charStyle().fontSize() / 10.0);
 						current.yPos -= currasce * (DropLines-1);
 //						qDebug() << QString("after dropcaps: y=%1").arg(current.yPos);
-						tcli.setPoint(0, QPoint(qRound(hl->glyph.xoffset), qRound(maxDY-DropLines*currasce)));
-						tcli.setPoint(1, QPoint(qRound(maxDX), qRound(maxDY-DropLines*currasce)));
 					}
 				}
-				tcli.setPoint(2, QPoint(qRound(maxDX), qRound(maxDY)));
-				tcli.setPoint(3, QPoint(qRound(hl->glyph.xoffset), qRound(maxDY)));
-				// #6821 : the following two lines are causing bad text flow around drop caps
-				// in some case, discarding them put more emphasis on user control of line spacing
-				/*cm = QRegion(pf2.map(tcli));
-				cl = cl.subtract(cm);*/
-//				current.yPos = maxDY;
 			}
 			// end of line
 			if ( SpecialChars::isBreak(hl->ch, Cols > 1) || (outs))
@@ -1909,8 +1903,16 @@
 							}
 							else
 							{
-								--a;
-								--current.itemsInLine;
+								if (current.line.firstItem == 0)
+								{
+									a = -1;
+									current.itemsInLine = 0;
+								}
+								else
+								{
+									--a;
+									--current.itemsInLine;
+								}
 							}
 						}
 						if (a >= 0)
@@ -1925,17 +1927,6 @@
 							else if (style.lineSpacingMode() == ParagraphStyle::BaselineGridLineSpacing)
 								style.setLineSpacing(m_Doc->typographicSettings.valueBaseGrid);
 						}
-						current.breakLine(itemText, style, firstLineOffset(), a);
-//						qDebug() << QString("style no break pos %1: %2 (%3)").arg(a).arg(style.alignment()).arg(style.parent());
-//						qDebug() << QString("style nb @%6: %1 -- %2, %4/%5 char: %3").arg(style.leftMargin()).arg(style.rightMargin())
-//							   .arg(style.charStyle().asString()).arg(style.name()).arg(style.parent())
-//							   .arg(a);
-						EndX = current.endOfLine(cl, pf2, style.rightMargin());
-						current.finishLine(EndX);
-//						qDebug() << QString("no break pos: %1-%2 @ %3 wid %4 nat %5 endX %6")
-//							   .arg(current.line.firstItem).arg(current.line.firstItem)
-//							   .arg(current.line.x).arg(current.line.width).arg(current.line.naturalWidth).arg(EndX);
-						indentLine(itemText, current.line, 0);
 					}
 				}
 				if ( outs || SpecialChars::isBreak(hl->ch, (Cols > 1)) )
@@ -1946,8 +1937,6 @@
 							&& current.hasDropCap)
 						{
 							current.hasDropCap = false;
-							if (current.yPos < maxDY)
-								current.yPos = maxDY;
 //							qDebug() << QString("after dropcaps: y=%1 maxDY=%2").arg(current.yPos).arg(maxDY);
 						}
 						bool fromOut = true;
@@ -1981,7 +1970,10 @@
 										current.xPos = current.colLeft;
 									}
 									else
-										current.xPos = maxDX;
+										if (current.itemsInLine > 0)
+											current.xPos = maxDX;
+										else
+											current.xPos = current.colLeft;
 								}
 								else
 									current.xPos = current.colLeft;
@@ -2080,7 +2072,7 @@

 				// calc. needed vertical space
 				// Let’s try to change into "calc. _wanted_ vertical space" - pm
-				if (current.itemsInLine != 0)
+				if (current.itemsInLine > 0)
 				{
 					if ( itemText.charStyle(current.line.firstItem).effects() & ScStyle_DropCap)
 					{
@@ -2090,12 +2082,12 @@
 					}
 				}

-				fillInTabLeaders(itemText, current.line);
-
+				if (current.itemsInLine > 0)
+					fillInTabLeaders(itemText, current.line);
 				current.startOfCol = false;
 //				qDebug() << QString("layout: line %1 - %2 @ (%3,%4) wd %5/%6").arg(current.line.firstItem).arg(current.line.lastItem)
 //					   .arg(current.line.x).arg(current.line.y).arg(current.line.naturalWidth).arg(current.line.width);
-				if (current.line.firstItem > current.line.lastItem)
+				if (current.line.firstItem >= current.line.lastItem)
 					; //qDebug() << QString("layout: empty line %1 - %2").arg(current.line.firstItem).arg(current.line.lastItem);
 				else if (current.itemsInLine > 0)
 					itemText.appendLine(current.line);

cezaryece

2011-06-14 19:03

developer   ~0026394

Patch is here.
I test it, but you must also check it with your files before commit.

It is solving problems with text extending available area (margins, columns gaps) and unwanted add frame text distances to overflow area.

Crossing fingers about it will work good...

cezaryece

2011-06-16 09:58

developer   ~0026411

I have found new small issue, so wait for new version.

BTW even now this patch solves 0009932: First text line does not flow around objects

cezaryece

2011-06-21 14:20

developer   ~0026447

Small issue was a big elephant...

But now I can introduce you new patch fixing all biggest formatting issues:
- text extending margins
- unwanted adds of text indents and margins to overflow areas
- parts of glyphs in overflow areas (when edge is not 0 angle to text)
and few smaller formatting issues I have found during preparing that solution.

BTW I have found that formatting using integer coordinates of glyphs and page items positions can gives us low quality of it (for example 0009902 may be that kind of bug - to low precision)
 I know - changing whole computing to floating precision can be deadly solution for machines with low computing power, but maybe it could be set in preferences and user will decide what is his goal - comfortable speed or best quality.

cezaryece

2011-06-21 14:20

developer

formatting.patch (23,582 bytes)
Index: Version135/Scribus/scribus/pageitem_textframe.cpp
===================================================================
--- Version135/Scribus/scribus/pageitem_textframe.cpp	(wersja 16641)
+++ Version135/Scribus/scribus/pageitem_textframe.cpp	(kopia robocza)
@@ -155,9 +155,7 @@
 					if ((currentGroup != -1) && (docItem->Groups.count() != 0) && (currentGroup == docItem->Groups.top()))
 						continue;
 					if (docItem->textFlowAroundObject())
-					{
-						result = result.subtract(itemShape(docItem, Mp->xOffset() - Dp->xOffset(), Mp->yOffset() - Dp->yOffset()));
-					}
+						result = result.subtracted(itemShape(docItem, Mp->xOffset() - Dp->xOffset(), Mp->yOffset() - Dp->yOffset()));
 					if (docItem->isGroupControl)
 						currentGroup = docItem->Groups.top();
 				}
@@ -192,7 +190,7 @@
 					if ((currentGroup != -1) && (docItem->Groups.count() != 0) && (currentGroup == docItem->Groups.top()))
 						continue;
 					if (docItem->textFlowAroundObject())
-						result = result.subtract(itemShape(docItem, 0, 0));
+						result = result.subtracted(itemShape(docItem, 0, 0));
 					if (docItem->isGroupControl)
 						currentGroup = docItem->Groups.top();
 				}
@@ -398,7 +396,8 @@
 		line.x = xPos;
 		line.y = yPos;
 		line.firstItem = first;
-		line.ascent = 10;
+		line.lastItem = 0;
+		line.ascent = 0;
 		line.descent = 0;
 		line.width = 0;
 		line.naturalWidth = 0;
@@ -407,6 +406,7 @@
 		breakXPos = 0;
 		maxShrink = 0;
 		maxStretch = 0;
+		width = 0;
 	}


@@ -522,7 +522,7 @@
 		double maxX = colRight - morespace;
 		if (legacy) maxX -= (lineCorr + insets.Right);

-		double StartX = floor(qMax(line.x, qMin(colRight,breakXPos) - 1));
+		double StartX = floor(qMax(line.x, qMin(maxX,breakXPos-maxShrink-1))-1);
 		int xPos  = static_cast<int>(ceil(maxX + insets.Right));
 		int yDesc = static_cast<int>(yPos+line.descent);
 		int yAsc  = static_cast<int>(ceil(yPos-line.ascent));
@@ -542,7 +542,7 @@
 		// if the intersection only has 1 rectangle, then nothing gets in the way
 		if (lineI.numRects() == 1)
 		{
-			int xPos = qRound(ceil(StartX + 0.125 + insets.Right));
+			int xPos = static_cast<int>(ceil(StartX + 0.125 + insets.Right));
 			pt12.setX(xPos);
 			pt22.setX(xPos);
 			if (shape.contains(pf2.map(pt12)) && shape.contains(pf2.map(pt22)))
@@ -560,7 +560,7 @@
 		double Interval = 0.125;
 		do {
 			EndX2 += Interval;
-			int xPos = qRound(ceil(EndX2 + insets.Right));
+			int xPos = static_cast<int>(ceil(EndX2));
 			pt12.setX (xPos);
 			pt22.setX (xPos);
 		} while ((EndX2 < maxX) && shape.contains(pf2.map(pt12)) && shape.contains(pf2.map(pt22)));
@@ -704,7 +704,7 @@
 			double currasce (this->getLineAscent(itemText));
 			if( offsetPolicy == FLOPRealGlyphHeight )
 			{
-				adj = firstasce - currasce;
+				adj = firstasce - currasce -1;
 			}
 			else if( offsetPolicy == FLOPFontAscent )
 			{
@@ -952,9 +952,10 @@
 //	ScribusView* view = m_Doc->view();
 	QMatrix pf2;
 	QPoint pt1, pt2;
+	QRect pt;
 	/*QRegion cm;*/
 	double chs, chsd = 0;
-	double oldCurY, EndX, OFs, wide, kernVal;
+	double oldCurY, EndX, OFs, wide=0, kernVal;
 	QString chstr;
 	ScText *hl;
 	ParagraphStyle style;
@@ -975,7 +976,8 @@
 	tTabValues.clear();

 	bool DropCmode = false;
-	double desc=0, asce=0, maxDY=0, desc2=0, maxDX=0;
+	double desc=0, asce=0,  desc2=0, realAsce=0, realDesc = 0;
+	double maxDY=0, maxDX=0;
 	double DropCapDrop = 0;
 	int    DropLines = 0;
 	int    DropLinesCount = 0;
@@ -998,6 +1000,10 @@
 	current.init(Width, Height, extra, lineCorr);
 	current.initColumns(columnWidth(), ColGap);
 	current.hyphenCount = 0;
+
+	//hold Y position of last line of text (with glyphs descent)
+	//for moving next line if glyphs are higher than that
+	double lastLineY;

 	// dump styles
 /*
@@ -1037,6 +1043,7 @@
 		}

 		current.nextColumn(0);
+		lastLineY = 0;

 		// find start of first line
 		if (firstInFrame() < itemText.length())
@@ -1075,6 +1082,7 @@
 		outs = false;
 		OFs = 0;
 		MaxChars = 0;
+		double xStep = legacy? 1 : 0.125;
 		for (int a = firstInFrame(); a < itemText.length(); ++a)
 		{
 			hl = itemText.item(a);
@@ -1326,14 +1334,16 @@
 				double hlcsize10=charStyle.fontSize() / 10.0;
 				if ((hl->ch == SpecialChars::OBJECT) && (hl->embedded.hasItem()))
 				{
-					desc = desc2 = 0;
+					desc = desc2 = realDesc = 0;
 				}
 				else
 				{
 					desc = desc2 = -charStyle.font().descent(hlcsize10);
+					realDesc = charStyle.font().realCharDescent(chstr[0], hlcsize10);
 					current.rememberShrinkStretch(hl->ch, wide, style);
 				}
 				asce = charStyle.font().ascent(hlcsize10);
+				realAsce = charStyle.font().realCharAscent(chstr[0], hlcsize10);
 //				wide = wide * hl->glyph.scaleH;
 			}
 			fBorder = false;
@@ -1346,6 +1356,7 @@
 				{
 					// start next col
 					current.nextColumn(asce);
+					lastLineY = 0;
 					if (((a > firstInFrame()) && (itemText.text(a-1) == SpecialChars::PARSEP))
 						|| ((a == firstInFrame()) && (BackBox == 0)))
 					{
@@ -1394,7 +1405,7 @@
 				if (current.startOfCol)
 				{
 //					qDebug() << QString("current.startOfCol: %1 + %2 + %3 + 1 =%4").arg(asce).arg(extra.Top).arg(lineCorr).arg(asce + extra.Top + lineCorr + 1);
-					current.yPos = asce + extra.Top + lineCorr + 1;
+					current.yPos = realAsce + extra.Top + lineCorr + 1;
 //							if (((a > 0) && (itemText.at(a-1)->ch == QChar(13))) || ((a == 0) && (BackBox == 0)))
 //								current.yPos += m_Doc->docParagraphStyles[hl->cab].gapBefore;
 				}
@@ -1417,28 +1428,42 @@
  					current.yPos = TopOffset+1;
 				}
 				 */
+				//find line start
+				double leftIndent = 0;
+				if (!current.hasDropCap)
+					leftIndent = style.leftMargin();
+				if (a==0 || (a > 0 && (itemText.text(a-1) == SpecialChars::PARSEP)))
+					leftIndent += style.firstIndent();
+				current.xPos = qMax(leftIndent + current.colLeft, current.xPos);
+
 				// find linelength:
-				pt1 = QPoint(static_cast<int>(ceil(current.xPos)), static_cast<int>(current.yPos+BotOffset));
-				pt2 = QPoint(static_cast<int>(ceil(current.xPos)), static_cast<int>(ceil(current.yPos-TopOffset)));
+				pt = QRect( QPoint(static_cast<int>(ceil(current.xPos)), static_cast<int>(current.yPos+BotOffset)),
+							QPoint(static_cast<int>(ceil(current.xPos + (1 - style.minGlyphExtension()) * wide)), static_cast<int>(current.yPos-TopOffset)));
 				// increase pt1/pt2 until i-beam reaches end of line
 //				qDebug() << QString("linestart: %1 + %2 + %3 < %4").arg(current.xPos).arg(wide).arg(style.rightMargin()).arg(current.colRight);
-				double leftIndent = 0;
-				double xStep = legacy? 1 : 0.125;
-				while (!cl.contains(pf2.map(pt1)) || !cl.contains(pf2.map(pt2)) || current.isEndOfLine(wide + leftIndent + style.rightMargin()))
+				while (!QRegion(pf2.mapToPolygon(pt)).subtracted(cl).isEmpty() || current.isEndOfLine((1 - style.minGlyphExtension()) * wide + style.rightMargin()))
 				{
 					fBorder = true;
 					current.xPos += xStep;
-					if (current.isEndOfLine(wide + leftIndent + style.rightMargin()))
+					if (current.isEndOfLine((1 - style.minGlyphExtension()) * wide + style.rightMargin()))
 					{
 //						qDebug() << QString("eocol %5? %1 + %2 + %3 + %4").arg(current.yPos).arg(current.startOfCol).arg(style.lineSpacingMode() == ParagraphStyle::BaselineGridLineSpacing).arg(style.lineSpacing()).arg(current.column);
 						// new line
 						fBorder = false;
-						current.xPos = current.colLeft;
-
-						leftIndent = style.leftMargin();
-						if (a > 0 && itemText.text(a-1) == SpecialChars::PARSEP)
-							leftIndent += style.firstIndent();
-
+						if (current.hasDropCap)
+						{
+							DropLinesCount++;
+							if (DropLinesCount >= DropLines)
+							{
+								current.hasDropCap = false;
+								current.xPos = current.colLeft;
+								maxDX = 0;
+							}
+						}
+						if (current.hasDropCap)
+							current.xPos = maxDX;
+						else
+							current.xPos = current.colLeft - extra.Left + leftIndent;
 						if (current.startOfCol)
 							current.yPos++;
 						else
@@ -1461,6 +1486,7 @@
 							if (current.column < Cols)
 							{
 								current.nextColumn(asce);
+								lastLineY = 0;
 								if (((a > firstInFrame()) && (itemText.text(a-1) == SpecialChars::PARSEP)) || ((a == firstInFrame()) && (BackBox == 0)))
 								{
 									if (chstr[0] != SpecialChars::PARSEP)
@@ -1497,26 +1523,25 @@
 							}
 						}
 					}
-					pt1 = QPoint(static_cast<int>(ceil(current.xPos)), static_cast<int>(current.yPos+BotOffset));
-					pt2 = QPoint(static_cast<int>(ceil(current.xPos)), static_cast<int>(ceil(current.yPos-TopOffset)));
+					pt.moveTopLeft(QPoint(static_cast<int>(ceil(current.xPos)), static_cast<int>(current.yPos+BotOffset)));
 				}

-				if (((fBorder)) && (!current.hasDropCap))
-					current.xPos += extra.Left;
+//				if (((fBorder)) && (!current.hasDropCap))
+//					current.xPos += extra.Left;
+				if (current.hasDropCap)
+					current.xPos = qMax(maxDX, current.xPos);
+				else
+					current.xPos = qMax(current.colLeft, current.xPos);
 				// indent first line of par
-				if (a > 0)
-				{
-					if (itemText.text(a-1) == SpecialChars::PARSEP)
-						current.xPos += style.firstIndent();
-				}
-				else
-				{
-					if (legacy)
-						current.xPos += style.firstIndent();
-				}
+				leftIndent = 0;
+				if (a==0 || (a > 0 && (itemText.text(a-1) == SpecialChars::PARSEP)))
+					leftIndent = style.firstIndent();
 				// add left margin
 				if (!current.hasDropCap)
-					current.xPos += style.leftMargin();
+					leftIndent += style.leftMargin();
+				if (leftIndent+current.colLeft < current.xPos)
+					leftIndent = 0;
+				current.xPos = qMax(leftIndent + current.colLeft, current.xPos);
 				if (opticalMargins & ParagraphStyle::OM_LeftHangingPunct) {
 					current.xPos += opticalLeftMargin(itemText, current.line);
 				}
@@ -1528,6 +1553,30 @@
 			else {
 //				qDebug() << QString("cont.' line: '%1'").arg(a);
 			}
+
+			//ATTENTION
+			// that variable is used in lastLineY computing
+			//it should be set in document preferences or/and depends on current paragraph language
+			//as not all languages use ascented chars
+			bool preventingAscents = true;
+			//never for first line
+			//check if line must start at new Y position due to current glyph height or previous line descent
+			//not working for AutomaticLineSpacing (it is buggy case), so I skip it
+
+			if (lastLineY > 0 && style.lineSpacingMode() != ParagraphStyle::AutomaticLineSpacing
+					&& qMin(asce, realAsce) > current.yPos - lastLineY)
+			{
+				if (style.lineSpacingMode() == ParagraphStyle::BaselineGridLineSpacing)
+					current.yPos += m_Doc->typographicSettings.valueBaseGrid;
+				else
+					current.yPos += style.lineSpacing();
+				a = current.breakIndex = current.line.firstItem -1;
+				current.itemsInLine = current.maxShrink = 0;
+				current.xPos = current.breakXPos = current.colLeft;
+				current.startOfCol = false;
+				continue;
+			}
+
 			// right tab stuff
 			if (tabs.active)
 			{
@@ -1631,28 +1680,29 @@
 			{
 				if (hl->effects() & ScStyle_HyphenationPossible || hl->ch == SpecialChars::SHYPHEN)
 				{
-					pt1 = QPoint(qRound(ceil(current.xPos+extra.Right - current.maxShrink + charStyle.font().charWidth('-', charStyle.fontSize() / 10.0) * (charStyle.scaleH() / 1000.0))), qRound(current.yPos+desc));
-					pt2 = QPoint(qRound(ceil(current.xPos+extra.Right - current.maxShrink + charStyle.font().charWidth('-', charStyle.fontSize() / 10.0) * (charStyle.scaleH() / 1000.0))), qRound(ceil(current.yPos-asce)));
+					pt1 = QPoint(static_cast<int>(ceil(current.xPos - current.maxShrink)), static_cast<int>(current.yPos+desc));
+					pt2 = QPoint(static_cast<int>(ceil(current.xPos - current.maxShrink + charStyle.font().charWidth('-', charStyle.fontSize() / 10.0) * (charStyle.scaleH() / 1000.0))), static_cast<int>(ceil(current.yPos-asce)));
 				}
 				else
 				{
-					pt1 = QPoint(qRound(ceil(current.xPos+extra.Right - current.maxShrink )), qRound(current.yPos+desc));
-					pt2 = QPoint(qRound(ceil(current.xPos+extra.Right - current.maxShrink )), qRound(ceil(current.yPos-asce)));
+					pt1 = QPoint(static_cast<int>(ceil(current.xPos - current.maxShrink)), static_cast<int>(current.yPos+desc));
+					pt2 = QPoint(static_cast<int>(ceil(current.xPos - current.maxShrink +(1 - style.minGlyphExtension()) * wide)), static_cast<int>(ceil(current.yPos-asce)));
 				}
 			}
 			else if (!legacy && SpecialChars::isBreakingSpace(hl->ch))
 			{
-				pt1 = QPoint(qRound(ceil(breakPos + extra.Right - current.maxShrink )), qRound(current.yPos+desc));
-				pt2 = QPoint(qRound(ceil(breakPos + extra.Right - current.maxShrink )), qRound(ceil(current.yPos-asce)));
+				pt1 = QPoint(static_cast<int>(ceil(breakPos - current.maxShrink)), static_cast<int>(current.yPos+desc));
+				pt2 = QPoint(static_cast<int>(ceil(breakPos - current.maxShrink +(1 - style.minGlyphExtension()) * wide)), static_cast<int>(ceil(current.yPos-asce)));
 			}
 			else
 			{
-				pt1 = QPoint(qRound(ceil(current.xPos+extra.Right - current.maxShrink)), qRound(current.yPos+desc));
-				pt2 = QPoint(qRound(ceil(current.xPos+extra.Right - current.maxShrink)), qRound(ceil(current.yPos-asce)));
+				pt1 = QPoint(static_cast<int>(ceil(current.xPos - current.maxShrink)), static_cast<int>(current.yPos-realAsce));
+				pt2 = QPoint(static_cast<int>(ceil(current.xPos - current.maxShrink +(1 - style.minGlyphExtension()) * wide)), static_cast<int>(ceil(current.yPos+realDesc)));
 			}
+			pt = QRect(pt1, pt2);

 			// test if end of line reached
-			if ((!cl.contains(pf2.map(pt1))) || (!cl.contains(pf2.map(pt2))) || (legacy && current.isEndOfLine(style.rightMargin())))
+			if (!QRegion(pf2.mapToPolygon(pt)).subtracted(cl).isEmpty() || (legacy && current.isEndOfLine(style.rightMargin())))
 				outs = true;
 			if (current.isEndOfCol())
 				outs = true;
@@ -1661,7 +1711,6 @@
 			if ((hl->ch == SpecialChars::COLBREAK) && (Cols > 1))
 				goNextColumn = true;

-
 			// remember possible break
 			// #5783 : comment out "&& !outs" as this make it possible to perform a line break
 			// before a space which contradicts unicode line breaking rules
@@ -1728,7 +1777,6 @@
 //				qDebug() << QString("dropcapoffset: %1 -> %2").arg(current.xPos-style.dropCapOffset()).arg(current.xPos);
 				current.xPos = qMax(current.xPos, current.colLeft);
 				maxDX = current.xPos;
-				QPolygon tcli(4);
 				if (style.lineSpacingMode() == ParagraphStyle::BaselineGridLineSpacing)
 				{
 					current.yPos -= m_Doc->typographicSettings.valueBaseGrid * (DropLines-1);
@@ -1739,9 +1787,6 @@
 					int ol2 = static_cast<int>(ol1 / m_Doc->typographicSettings.valueBaseGrid);
 //					qDebug() << QString("baseline adjust after dropcaps: y=%1->%2").arg(current.yPos).arg(ceil(  ol2 / 10000.0 ) * m_Doc->typographicSettings.valueBaseGrid + m_Doc->typographicSettings.offsetBaseGrid - by);
 					current.yPos = ceil(  ol2 / 10000.0 ) * m_Doc->typographicSettings.valueBaseGrid + m_Doc->typographicSettings.offsetBaseGrid - by;
-					//FIXME: use current.colLeft instead of xOffset?
-					tcli.setPoint(0, QPoint(qRound(hl->glyph.xoffset), qRound(maxDY-DropLines*m_Doc->typographicSettings.valueBaseGrid)));
-					tcli.setPoint(1, QPoint(qRound(maxDX), qRound(maxDY-DropLines*m_Doc->typographicSettings.valueBaseGrid)));
 				}
 				else
 				{
@@ -1749,25 +1794,14 @@
 					{
 						current.yPos -= style.lineSpacing() * (DropLines-1);
 //						qDebug() << QString("after dropcaps: y=%1").arg(current.yPos);
-						tcli.setPoint(0, QPoint(qRound(hl->glyph.xoffset), qRound(maxDY - DropLines * style.lineSpacing())));
-						tcli.setPoint(1, QPoint(qRound(maxDX), qRound(maxDY-DropLines*style.lineSpacing())));
 					}
 					else
 					{
 						double currasce = charStyle.font().height(style.charStyle().fontSize() / 10.0);
 						current.yPos -= currasce * (DropLines-1);
 //						qDebug() << QString("after dropcaps: y=%1").arg(current.yPos);
-						tcli.setPoint(0, QPoint(qRound(hl->glyph.xoffset), qRound(maxDY-DropLines*currasce)));
-						tcli.setPoint(1, QPoint(qRound(maxDX), qRound(maxDY-DropLines*currasce)));
 					}
 				}
-				tcli.setPoint(2, QPoint(qRound(maxDX), qRound(maxDY)));
-				tcli.setPoint(3, QPoint(qRound(hl->glyph.xoffset), qRound(maxDY)));
-				// #6821 : the following two lines are causing bad text flow around drop caps
-				// in some case, discarding them put more emphasis on user control of line spacing
-				/*cm = QRegion(pf2.map(tcli));
-				cl = cl.subtract(cm);*/
-//				current.yPos = maxDY;
 			}
 			// end of line
 			if ( SpecialChars::isBreak(hl->ch, Cols > 1) || (outs))
@@ -1853,7 +1887,7 @@
 //???						current.breakXPos = current.line.x;
 //???						for (int j=current.line.firstItem; j <= a; ++j)
 //???							current.breakXPos += itemText.item(j)->glyph.wide();
-
+						double hyphWidth = 0.0;
 						if ((hl->effects() & ScStyle_HyphenationPossible) || hl->ch == SpecialChars::SHYPHEN)
 						{
 							// insert hyphen
@@ -1862,6 +1896,7 @@
 							hl->glyph.grow();
 							hl->glyph.more->glyph = charStyle.font().char2CMap(QChar('-'));
 							hl->glyph.more->xadvance = charStyle.font().charWidth('-', itemText.charStyle(a).fontSize() / 10.0) * (itemText.charStyle(a).scaleH() / 1000.0);
+							hyphWidth = hl->glyph.more->xadvance;
 						}
 						else
 						{
@@ -1876,6 +1911,8 @@
 						{
 							if (opticalMargins & ParagraphStyle::OM_RightHangingPunct)
 								current.line.width += opticalRightMargin(itemText, current.line);
+							else
+								current.line.naturalWidth += hyphWidth;

 							OFs = 0;
 							if (style.alignment() == ParagraphStyle::Rightaligned)
@@ -1902,15 +1939,18 @@
 					{
 						if (a >= current.line.firstItem)
 						{
-							if ((hl->effects() & ScStyle_HyphenationPossible) || hl->ch == SpecialChars::SHYPHEN)
+							if ((hl->effects() & ScStyle_HyphenationPossible) || hl->ch == SpecialChars::SHYPHEN
+									|| current.line.lastItem == 0)
 							{
 								current.itemsInLine = 0;
 								a = current.line.firstItem - 1;
 							}
 							else
 							{
-								--a;
-								--current.itemsInLine;
+//								--a;
+//								--current.itemsInLine;
+								current.itemsInLine = 0;
+								a = current.line.firstItem - 1;
 							}
 						}
 						if (a >= 0)
@@ -1925,17 +1965,17 @@
 							else if (style.lineSpacingMode() == ParagraphStyle::BaselineGridLineSpacing)
 								style.setLineSpacing(m_Doc->typographicSettings.valueBaseGrid);
 						}
-						current.breakLine(itemText, style, firstLineOffset(), a);
+						//current.breakLine(itemText, style, firstLineOffset(), a);
 //						qDebug() << QString("style no break pos %1: %2 (%3)").arg(a).arg(style.alignment()).arg(style.parent());
 //						qDebug() << QString("style nb @%6: %1 -- %2, %4/%5 char: %3").arg(style.leftMargin()).arg(style.rightMargin())
 //							   .arg(style.charStyle().asString()).arg(style.name()).arg(style.parent())
 //							   .arg(a);
-						EndX = current.endOfLine(cl, pf2, style.rightMargin());
-						current.finishLine(EndX);
+						//EndX = current.endOfLine(cl, pf2, style.rightMargin());
+						//current.finishLine(EndX);
 //						qDebug() << QString("no break pos: %1-%2 @ %3 wid %4 nat %5 endX %6")
 //							   .arg(current.line.firstItem).arg(current.line.firstItem)
 //							   .arg(current.line.x).arg(current.line.width).arg(current.line.naturalWidth).arg(EndX);
-						indentLine(itemText, current.line, 0);
+						//indentLine(itemText, current.line, 0);
 					}
 				}
 				if ( outs || SpecialChars::isBreak(hl->ch, (Cols > 1)) )
@@ -1954,9 +1994,12 @@
 						double BotOffset = desc+extra.Bottom+lineCorr;
 						while (!current.isEndOfLine(style.rightMargin()))
 						{
-							current.xPos++;
+							current.xPos += xStep;
 							if (current.isEndOfLine(style.rightMargin()))
 							{
+								lastLineY = current.yPos + 1;
+								if (!preventingAscents)
+									lastLineY += current.line.descent -1;
 								fromOut = false;
 //								qDebug() << QString("layout: next lower2 grid=%1 x %2").arg(style.lineSpacingMode() == ParagraphStyle::BaselineGridLineSpacing).arg(m_Doc->typographicSettings.valueBaseGrid);
 //								qDebug() << QString("nextline: y=%1+%2").arg(current.yPos).arg(style.lineSpacingMode() == ParagraphStyle::BaselineGridLineSpacing? m_Doc->typographicSettings.valueBaseGrid : style.lineSpacing());
@@ -1979,6 +2022,7 @@
 									{
 										current.hasDropCap = false;
 										current.xPos = current.colLeft;
+										maxDX = 0;
 									}
 									else
 										current.xPos = maxDX;
@@ -2000,8 +2044,8 @@
 							// performed at lines 1488-1512 and can trigger hang due to changing region detection
 							//pt1 = QPoint(qRound(current.xPos+extra.Right), static_cast<int>(current.yPos+BotOffset));
 							//pt2 = QPoint(qRound(current.xPos+extra.Right), static_cast<int>(ceil(current.yPos-asce)));
-							pt1 = QPoint(qRound(current.xPos+extra.Right), qRound(current.yPos+BotOffset));
-							pt2 = QPoint(qRound(current.xPos+extra.Right), qRound(ceil(current.yPos-asce)));
+							pt1 = QPoint(static_cast<int>(current.xPos), static_cast<int>(current.yPos+BotOffset));
+							pt2 = QPoint(static_cast<int>(current.xPos), static_cast<int>(ceil(current.yPos-asce)));
 							if (cl.contains(pf2.map(pt1)) && cl.contains(pf2.map(pt2)))
 								break;
 //							else
@@ -2016,7 +2060,7 @@
 //								qDebug() << QString("go no room 2: %1").arg(a);
 								break;
 							}
-							current.xPos--;
+							current.xPos-=xStep;
 							current.xPos = qMax(current.xPos, current.colLeft);
 						}
 					}
@@ -2033,10 +2077,12 @@
 //						qDebug() << QString("layout: next lower3 grid=%1 x %2").arg(style.lineSpacingMode() == ParagraphStyle::BaselineGridLineSpacing).arg(m_Doc->typographicSettings.valueBaseGrid);


+						lastLineY = current.yPos + 1;
+						if (!preventingAscents)
+							lastLineY += current.line.descent -1;
 						if (style.lineSpacingMode() == ParagraphStyle::BaselineGridLineSpacing)
 						{
 //							qDebug() << QString("next line (grid): y=%1+%2").arg(current.yPos).arg(m_Doc->typographicSettings.valueBaseGrid);
-
 							current.yPos += m_Doc->typographicSettings.valueBaseGrid;
 						}
 						else
@@ -2059,6 +2105,7 @@
 							{
 								current.hasDropCap = false;
 								current.xPos = current.colLeft;
+								maxDX = 0;
 							}
 							else
 								current.xPos = maxDX;
@@ -2077,10 +2124,9 @@
 					}
 				}

-
 				// calc. needed vertical space
 				// Let’s try to change into "calc. _wanted_ vertical space" - pm
-				if (current.itemsInLine != 0)
+				if (current.itemsInLine > 0)
 				{
 					if ( itemText.charStyle(current.line.firstItem).effects() & ScStyle_DropCap)
 					{
@@ -2090,12 +2136,12 @@
 					}
 				}

-				fillInTabLeaders(itemText, current.line);
-
+				if (current.itemsInLine > 1)
+					fillInTabLeaders(itemText, current.line);
 				current.startOfCol = false;
 //				qDebug() << QString("layout: line %1 - %2 @ (%3,%4) wd %5/%6").arg(current.line.firstItem).arg(current.line.lastItem)
 //					   .arg(current.line.x).arg(current.line.y).arg(current.line.naturalWidth).arg(current.line.width);
-				if (current.line.firstItem > current.line.lastItem)
+				if (current.line.firstItem >= current.line.lastItem)
 					; //qDebug() << QString("layout: empty line %1 - %2").arg(current.line.firstItem).arg(current.line.lastItem);
 				else if (current.itemsInLine > 0)
 					itemText.appendLine(current.line);
@@ -2115,6 +2161,7 @@
 					if (current.column < Cols)
 					{
 						current.nextColumn(asce);
+						lastLineY = 0;
 					}
 					else
 					{

 					}
formatting.patch (23,582 bytes)

cbradney

2011-06-26 21:09

administrator   ~0026482

Err.. just testing this.. I am seeing the same behaviour as screen.jpg after applying formatting.patch... is this the right patch?

cezaryece

2011-06-27 13:03

developer   ~0026491

Yeah, you are right, fixing one issue other were broken... sorry.
Now I have patch more tested.
In the meantime I have found issue with top/bottom margins not working properly.

By the way I have change sensibility of text for frame height, so bottom text lines are rendered if in frame is space for it. Current behaviour is more restricted about frame height and line is not rendered even if there was space in frame for it.

cezaryece

2011-06-27 13:04

developer

formatting2.patch (25,956 bytes)

Index: Version135/Scribus/scribus/pageitem_textframe.cpp
===================================================================
--- Version135/Scribus/scribus/pageitem_textframe.cpp	(wersja 16641)
+++ Version135/Scribus/scribus/pageitem_textframe.cpp	(kopia robocza)
@@ -155,9 +155,7 @@
 					if ((currentGroup != -1) && (docItem->Groups.count() != 0) && (currentGroup == docItem->Groups.top()))
 						continue;
 					if (docItem->textFlowAroundObject())
-					{
-						result = result.subtract(itemShape(docItem, Mp->xOffset() - Dp->xOffset(), Mp->yOffset() - Dp->yOffset()));
-					}
+						result = result.subtracted(itemShape(docItem, Mp->xOffset() - Dp->xOffset(), Mp->yOffset() - Dp->yOffset()));
 					if (docItem->isGroupControl)
 						currentGroup = docItem->Groups.top();
 				}
@@ -192,7 +190,7 @@
 					if ((currentGroup != -1) && (docItem->Groups.count() != 0) && (currentGroup == docItem->Groups.top()))
 						continue;
 					if (docItem->textFlowAroundObject())
-						result = result.subtract(itemShape(docItem, 0, 0));
+						result = result.subtracted(itemShape(docItem, 0, 0));
 					if (docItem->isGroupControl)
 						currentGroup = docItem->Groups.top();
 				}
@@ -377,11 +375,12 @@
 	{
 		startOfCol = true;
 		colLeft = (colWidth + colGap) * column + insets.Left + lineCorr;
+		//now colRight is REAL column right edge
 		colRight = colLeft + colWidth;
 		if (legacy)
-			colRight += insets.Right + lineCorr; //???
+			colRight += lineCorr;
 		xPos = colLeft;
-		yPos = asce + insets.Top + lineCorr + 1;
+		yPos = asce + insets.Top + lineCorr;
 	}

 	bool isEndOfCol(double morespace = 0)
@@ -398,7 +397,8 @@
 		line.x = xPos;
 		line.y = yPos;
 		line.firstItem = first;
-		line.ascent = 10;
+		line.lastItem = 0;
+		line.ascent = 0;
 		line.descent = 0;
 		line.width = 0;
 		line.naturalWidth = 0;
@@ -407,6 +407,7 @@
 		breakXPos = 0;
 		maxShrink = 0;
 		maxStretch = 0;
+		width = 0;
 	}


@@ -439,12 +440,8 @@
 				if (newLooseness >= oldLooseness)
 					return;
 			}
-			breakXPos = colRight;
 		}
-		else
-		{
-			breakXPos = pos;
-		}
+		breakXPos = pos;
 		breakIndex = index;
 	}

@@ -476,7 +473,7 @@
 	bool isEndOfLine(double moreSpace = 0)
 	{
 		if (legacy)
-			return xPos + insets.Right + lineCorr + moreSpace - maxShrink >= colRight;
+			return xPos + lineCorr + moreSpace - maxShrink >= colRight;
 		else
 			return xPos + moreSpace - maxShrink >= colRight;
 	}
@@ -492,7 +489,7 @@
 		while ((!shape.contains(pf2.map(pt1))) || (!shape.contains(pf2.map(pt2))))
 		{
 			tmpX++;
-			if (xPos + (legacy? lineCorr + insets.Right : 0) + lineCorr + morespace >= colRight)
+			if (xPos + (legacy? lineCorr : 0) + lineCorr + morespace >= colRight)
 			{
 				return tmpX;
 			}
@@ -520,10 +517,10 @@

 		// if we aren't restricted further, we'll end at this maxX:
 		double maxX = colRight - morespace;
-		if (legacy) maxX -= (lineCorr + insets.Right);
+		if (legacy) maxX -= lineCorr;

-		double StartX = floor(qMax(line.x, qMin(colRight,breakXPos) - 1));
-		int xPos  = static_cast<int>(ceil(maxX + insets.Right));
+		double StartX = floor(qMax(line.x, qMin(maxX,breakXPos-maxShrink-1))-1);
+		int xPos  = static_cast<int>(ceil(maxX));
 		int yDesc = static_cast<int>(yPos+line.descent);
 		int yAsc  = static_cast<int>(ceil(yPos-line.ascent));

@@ -542,14 +539,14 @@
 		// if the intersection only has 1 rectangle, then nothing gets in the way
 		if (lineI.numRects() == 1)
 		{
-			int xPos = qRound(ceil(StartX + 0.125 + insets.Right));
+			int xPos = static_cast<int>(ceil(StartX + 0.125));
 			pt12.setX(xPos);
 			pt22.setX(xPos);
 			if (shape.contains(pf2.map(pt12)) && shape.contains(pf2.map(pt22)))
 			{
 				QRect rect = lineI.rects().at(0);
 				double  mx = qMax(rect.left(), rect.right()) - pf2.dx();
-				int steps = static_cast<int>((mx - StartX - insets.Right - 2)/0.125);
+				int steps = static_cast<int>((mx - StartX - 2)/0.125);
 				if (steps > 0)
 					StartX += steps * 0.125;
 			}
@@ -560,7 +557,7 @@
 		double Interval = 0.125;
 		do {
 			EndX2 += Interval;
-			int xPos = qRound(ceil(EndX2 + insets.Right));
+			int xPos = static_cast<int>(ceil(EndX2));
 			pt12.setX (xPos);
 			pt22.setX (xPos);
 		} while ((EndX2 < maxX) && shape.contains(pf2.map(pt12)) && shape.contains(pf2.map(pt22)));
@@ -570,7 +567,7 @@
 			qDebug()<<EndX<<EndX2<<StartX<<maxX;
 			qDebug()<<"DIFFERING ENDX!!!!!";
 		}*/
-		return EndX2;
+		return qMin(EndX2, colRight);
 	}


@@ -712,7 +709,10 @@
 			}
 			else if( offsetPolicy == FLOPLineSpacing )
 			{
-				adj = firstasce - style.lineSpacing();
+				if (style.lineSpacingMode() == ParagraphStyle::AutomaticLineSpacing)
+					adj = 0.0;
+				else
+					adj = firstasce - style.lineSpacing();
 			}
 			line.ascent = currasce;
 			line.y -= adj;
@@ -952,9 +952,10 @@
 //	ScribusView* view = m_Doc->view();
 	QMatrix pf2;
 	QPoint pt1, pt2;
+	QRect pt;
 	/*QRegion cm;*/
 	double chs, chsd = 0;
-	double oldCurY, EndX, OFs, wide, kernVal;
+	double oldCurY, EndX, OFs, wide=0, kernVal;
 	QString chstr;
 	ScText *hl;
 	ParagraphStyle style;
@@ -975,7 +976,8 @@
 	tTabValues.clear();

 	bool DropCmode = false;
-	double desc=0, asce=0, maxDY=0, desc2=0, maxDX=0;
+	double desc=0, asce=0,  desc2=0, realAsce=0, realDesc = 0;
+	double maxDY=0, maxDX=0;
 	double DropCapDrop = 0;
 	int    DropLines = 0;
 	int    DropLinesCount = 0;
@@ -998,6 +1000,10 @@
 	current.init(Width, Height, extra, lineCorr);
 	current.initColumns(columnWidth(), ColGap);
 	current.hyphenCount = 0;
+
+	//hold Y position of last line of text (with glyphs descent)
+	//for moving next line if glyphs are higher than that
+	double lastLineY;

 	// dump styles
 /*
@@ -1037,6 +1043,7 @@
 		}

 		current.nextColumn(0);
+		lastLineY = 0;

 		// find start of first line
 		if (firstInFrame() < itemText.length())
@@ -1075,6 +1082,7 @@
 		outs = false;
 		OFs = 0;
 		MaxChars = 0;
+		double xStep = legacy? 1 : 0.125;
 		for (int a = firstInFrame(); a < itemText.length(); ++a)
 		{
 			hl = itemText.item(a);
@@ -1326,14 +1334,16 @@
 				double hlcsize10=charStyle.fontSize() / 10.0;
 				if ((hl->ch == SpecialChars::OBJECT) && (hl->embedded.hasItem()))
 				{
-					desc = desc2 = 0;
+					desc = desc2 = realDesc = 0;
 				}
 				else
 				{
 					desc = desc2 = -charStyle.font().descent(hlcsize10);
+					realDesc = charStyle.font().realCharDescent(chstr[0], hlcsize10);
 					current.rememberShrinkStretch(hl->ch, wide, style);
 				}
 				asce = charStyle.font().ascent(hlcsize10);
+				realAsce = charStyle.font().realCharAscent(chstr[0], hlcsize10);
 //				wide = wide * hl->glyph.scaleH;
 			}
 			fBorder = false;
@@ -1346,6 +1356,7 @@
 				{
 					// start next col
 					current.nextColumn(asce);
+					lastLineY = 0;
 					if (((a > firstInFrame()) && (itemText.text(a-1) == SpecialChars::PARSEP))
 						|| ((a == firstInFrame()) && (BackBox == 0)))
 					{
@@ -1394,7 +1405,7 @@
 				if (current.startOfCol)
 				{
 //					qDebug() << QString("current.startOfCol: %1 + %2 + %3 + 1 =%4").arg(asce).arg(extra.Top).arg(lineCorr).arg(asce + extra.Top + lineCorr + 1);
-					current.yPos = asce + extra.Top + lineCorr + 1;
+					current.yPos = TopOffset + extra.Top + lineCorr;
 //							if (((a > 0) && (itemText.at(a-1)->ch == QChar(13))) || ((a == 0) && (BackBox == 0)))
 //								current.yPos += m_Doc->docParagraphStyles[hl->cab].gapBefore;
 				}
@@ -1417,28 +1428,42 @@
  					current.yPos = TopOffset+1;
 				}
 				 */
+				//find line start
+				double leftIndent = 0;
+				if (!current.hasDropCap)
+					leftIndent = style.leftMargin();
+				if (a==0 || (a > 0 && (itemText.text(a-1) == SpecialChars::PARSEP)))
+					leftIndent += style.firstIndent();
+				current.xPos = qMax(leftIndent + current.colLeft, current.xPos);
+
 				// find linelength:
-				pt1 = QPoint(static_cast<int>(ceil(current.xPos)), static_cast<int>(current.yPos+BotOffset));
-				pt2 = QPoint(static_cast<int>(ceil(current.xPos)), static_cast<int>(ceil(current.yPos-TopOffset)));
+				pt = QRect( QPoint(static_cast<int>(ceil(current.xPos)), static_cast<int>(current.yPos+BotOffset)),
+							QPoint(static_cast<int>(ceil(current.xPos + (1 - style.minGlyphExtension()) * wide)), static_cast<int>(current.yPos-TopOffset)));
 				// increase pt1/pt2 until i-beam reaches end of line
 //				qDebug() << QString("linestart: %1 + %2 + %3 < %4").arg(current.xPos).arg(wide).arg(style.rightMargin()).arg(current.colRight);
-				double leftIndent = 0;
-				double xStep = legacy? 1 : 0.125;
-				while (!cl.contains(pf2.map(pt1)) || !cl.contains(pf2.map(pt2)) || current.isEndOfLine(wide + leftIndent + style.rightMargin()))
+				while (!QRegion(pf2.mapToPolygon(pt)).subtracted(cl).isEmpty() || current.isEndOfLine((1 - style.minGlyphExtension()) * wide + style.rightMargin()))
 				{
 					fBorder = true;
 					current.xPos += xStep;
-					if (current.isEndOfLine(wide + leftIndent + style.rightMargin()))
+					if (current.isEndOfLine((1 - style.minGlyphExtension()) * wide + style.rightMargin()))
 					{
 //						qDebug() << QString("eocol %5? %1 + %2 + %3 + %4").arg(current.yPos).arg(current.startOfCol).arg(style.lineSpacingMode() == ParagraphStyle::BaselineGridLineSpacing).arg(style.lineSpacing()).arg(current.column);
 						// new line
 						fBorder = false;
-						current.xPos = current.colLeft;
-
-						leftIndent = style.leftMargin();
-						if (a > 0 && itemText.text(a-1) == SpecialChars::PARSEP)
-							leftIndent += style.firstIndent();
-
+						if (current.hasDropCap)
+						{
+							DropLinesCount++;
+							if (DropLinesCount >= DropLines)
+							{
+								current.hasDropCap = false;
+								current.xPos = current.colLeft;
+								maxDX = 0;
+							}
+						}
+						if (current.hasDropCap)
+							current.xPos = maxDX;
+						else
+							current.xPos = current.colLeft - extra.Left + leftIndent;
 						if (current.startOfCol)
 							current.yPos++;
 						else
@@ -1461,6 +1486,7 @@
 							if (current.column < Cols)
 							{
 								current.nextColumn(asce);
+								lastLineY = 0;
 								if (((a > firstInFrame()) && (itemText.text(a-1) == SpecialChars::PARSEP)) || ((a == firstInFrame()) && (BackBox == 0)))
 								{
 									if (chstr[0] != SpecialChars::PARSEP)
@@ -1497,26 +1523,23 @@
 							}
 						}
 					}
-					pt1 = QPoint(static_cast<int>(ceil(current.xPos)), static_cast<int>(current.yPos+BotOffset));
-					pt2 = QPoint(static_cast<int>(ceil(current.xPos)), static_cast<int>(ceil(current.yPos-TopOffset)));
+					pt.moveTopLeft(QPoint(static_cast<int>(ceil(current.xPos)), static_cast<int>(current.yPos+BotOffset)));
 				}

-				if (((fBorder)) && (!current.hasDropCap))
-					current.xPos += extra.Left;
+				if (current.hasDropCap)
+					current.xPos = qMax(maxDX, current.xPos);
+				else
+					current.xPos = qMax(current.colLeft, current.xPos);
 				// indent first line of par
-				if (a > 0)
-				{
-					if (itemText.text(a-1) == SpecialChars::PARSEP)
-						current.xPos += style.firstIndent();
-				}
-				else
-				{
-					if (legacy)
-						current.xPos += style.firstIndent();
-				}
+				leftIndent = 0;
+				if (a==0 || (a > 0 && (itemText.text(a-1) == SpecialChars::PARSEP)))
+					leftIndent = style.firstIndent();
 				// add left margin
 				if (!current.hasDropCap)
-					current.xPos += style.leftMargin();
+					leftIndent += style.leftMargin();
+				if (leftIndent+current.colLeft < current.xPos)
+					leftIndent = 0;
+				current.xPos = qMax(leftIndent + current.colLeft, current.xPos);
 				if (opticalMargins & ParagraphStyle::OM_LeftHangingPunct) {
 					current.xPos += opticalLeftMargin(itemText, current.line);
 				}
@@ -1528,6 +1551,30 @@
 			else {
 //				qDebug() << QString("cont.' line: '%1'").arg(a);
 			}
+
+			//ATTENTION
+			// that variable is used in lastLineY computing
+			//it should be set in document preferences or/and depends on current paragraph language
+			//as not all languages use ascented chars
+			bool preventingAscents = true;
+			//never for first line
+			//check if line must start at new Y position due to current glyph height or previous line descent
+			//not working for AutomaticLineSpacing (it is buggy case), so I skip it
+
+			if (lastLineY > 0 && style.lineSpacingMode() != ParagraphStyle::AutomaticLineSpacing
+					&& qMin(asce, realAsce) > current.yPos - lastLineY)
+			{
+				if (style.lineSpacingMode() == ParagraphStyle::BaselineGridLineSpacing)
+					current.yPos += m_Doc->typographicSettings.valueBaseGrid;
+				else
+					current.yPos += style.lineSpacing();
+				a = current.breakIndex = current.line.firstItem -1;
+				current.itemsInLine = current.maxShrink = 0;
+				current.xPos = current.breakXPos = current.colLeft;
+				current.startOfCol = false;
+				continue;
+			}
+
 			// right tab stuff
 			if (tabs.active)
 			{
@@ -1631,28 +1678,29 @@
 			{
 				if (hl->effects() & ScStyle_HyphenationPossible || hl->ch == SpecialChars::SHYPHEN)
 				{
-					pt1 = QPoint(qRound(ceil(current.xPos+extra.Right - current.maxShrink + charStyle.font().charWidth('-', charStyle.fontSize() / 10.0) * (charStyle.scaleH() / 1000.0))), qRound(current.yPos+desc));
-					pt2 = QPoint(qRound(ceil(current.xPos+extra.Right - current.maxShrink + charStyle.font().charWidth('-', charStyle.fontSize() / 10.0) * (charStyle.scaleH() / 1000.0))), qRound(ceil(current.yPos-asce)));
+					pt1 = QPoint(static_cast<int>(ceil(current.xPos - current.maxShrink)), static_cast<int>(current.yPos+desc));
+					pt2 = QPoint(static_cast<int>(ceil(current.xPos - current.maxShrink + charStyle.font().charWidth('-', charStyle.fontSize() / 10.0) * (charStyle.scaleH() / 1000.0))), static_cast<int>(ceil(current.yPos-asce)));
 				}
 				else
 				{
-					pt1 = QPoint(qRound(ceil(current.xPos+extra.Right - current.maxShrink )), qRound(current.yPos+desc));
-					pt2 = QPoint(qRound(ceil(current.xPos+extra.Right - current.maxShrink )), qRound(ceil(current.yPos-asce)));
+					pt1 = QPoint(static_cast<int>(ceil(current.xPos - current.maxShrink)), static_cast<int>(current.yPos+desc));
+					pt2 = QPoint(static_cast<int>(ceil(current.xPos - current.maxShrink +(1 - style.minGlyphExtension()) * wide)), static_cast<int>(ceil(current.yPos-asce)));
 				}
 			}
 			else if (!legacy && SpecialChars::isBreakingSpace(hl->ch))
 			{
-				pt1 = QPoint(qRound(ceil(breakPos + extra.Right - current.maxShrink )), qRound(current.yPos+desc));
-				pt2 = QPoint(qRound(ceil(breakPos + extra.Right - current.maxShrink )), qRound(ceil(current.yPos-asce)));
+				pt1 = QPoint(static_cast<int>(ceil(breakPos - current.maxShrink)), static_cast<int>(current.yPos+desc));
+				pt2 = QPoint(static_cast<int>(ceil(breakPos - current.maxShrink +(1 - style.minGlyphExtension()) * wide)), static_cast<int>(ceil(current.yPos-asce)));
 			}
 			else
 			{
-				pt1 = QPoint(qRound(ceil(current.xPos+extra.Right - current.maxShrink)), qRound(current.yPos+desc));
-				pt2 = QPoint(qRound(ceil(current.xPos+extra.Right - current.maxShrink)), qRound(ceil(current.yPos-asce)));
+				pt1 = QPoint(static_cast<int>(ceil(current.xPos - current.maxShrink)), static_cast<int>(current.yPos-realAsce));
+				pt2 = QPoint(static_cast<int>(ceil(current.xPos - current.maxShrink +(1 - style.minGlyphExtension()) * wide)), static_cast<int>(ceil(current.yPos+realDesc)));
 			}
+			pt = QRect(pt1, pt2);

 			// test if end of line reached
-			if ((!cl.contains(pf2.map(pt1))) || (!cl.contains(pf2.map(pt2))) || (legacy && current.isEndOfLine(style.rightMargin())))
+			if (!QRegion(pf2.mapToPolygon(pt)).subtracted(cl).isEmpty() || (legacy && current.isEndOfLine(style.rightMargin())))
 				outs = true;
 			if (current.isEndOfCol())
 				outs = true;
@@ -1661,7 +1709,6 @@
 			if ((hl->ch == SpecialChars::COLBREAK) && (Cols > 1))
 				goNextColumn = true;

-
 			// remember possible break
 			// #5783 : comment out "&& !outs" as this make it possible to perform a line break
 			// before a space which contradicts unicode line breaking rules
@@ -1728,7 +1775,6 @@
 //				qDebug() << QString("dropcapoffset: %1 -> %2").arg(current.xPos-style.dropCapOffset()).arg(current.xPos);
 				current.xPos = qMax(current.xPos, current.colLeft);
 				maxDX = current.xPos;
-				QPolygon tcli(4);
 				if (style.lineSpacingMode() == ParagraphStyle::BaselineGridLineSpacing)
 				{
 					current.yPos -= m_Doc->typographicSettings.valueBaseGrid * (DropLines-1);
@@ -1739,9 +1785,6 @@
 					int ol2 = static_cast<int>(ol1 / m_Doc->typographicSettings.valueBaseGrid);
 //					qDebug() << QString("baseline adjust after dropcaps: y=%1->%2").arg(current.yPos).arg(ceil(  ol2 / 10000.0 ) * m_Doc->typographicSettings.valueBaseGrid + m_Doc->typographicSettings.offsetBaseGrid - by);
 					current.yPos = ceil(  ol2 / 10000.0 ) * m_Doc->typographicSettings.valueBaseGrid + m_Doc->typographicSettings.offsetBaseGrid - by;
-					//FIXME: use current.colLeft instead of xOffset?
-					tcli.setPoint(0, QPoint(qRound(hl->glyph.xoffset), qRound(maxDY-DropLines*m_Doc->typographicSettings.valueBaseGrid)));
-					tcli.setPoint(1, QPoint(qRound(maxDX), qRound(maxDY-DropLines*m_Doc->typographicSettings.valueBaseGrid)));
 				}
 				else
 				{
@@ -1749,25 +1792,14 @@
 					{
 						current.yPos -= style.lineSpacing() * (DropLines-1);
 //						qDebug() << QString("after dropcaps: y=%1").arg(current.yPos);
-						tcli.setPoint(0, QPoint(qRound(hl->glyph.xoffset), qRound(maxDY - DropLines * style.lineSpacing())));
-						tcli.setPoint(1, QPoint(qRound(maxDX), qRound(maxDY-DropLines*style.lineSpacing())));
 					}
 					else
 					{
 						double currasce = charStyle.font().height(style.charStyle().fontSize() / 10.0);
 						current.yPos -= currasce * (DropLines-1);
 //						qDebug() << QString("after dropcaps: y=%1").arg(current.yPos);
-						tcli.setPoint(0, QPoint(qRound(hl->glyph.xoffset), qRound(maxDY-DropLines*currasce)));
-						tcli.setPoint(1, QPoint(qRound(maxDX), qRound(maxDY-DropLines*currasce)));
 					}
 				}
-				tcli.setPoint(2, QPoint(qRound(maxDX), qRound(maxDY)));
-				tcli.setPoint(3, QPoint(qRound(hl->glyph.xoffset), qRound(maxDY)));
-				// #6821 : the following two lines are causing bad text flow around drop caps
-				// in some case, discarding them put more emphasis on user control of line spacing
-				/*cm = QRegion(pf2.map(tcli));
-				cl = cl.subtract(cm);*/
-//				current.yPos = maxDY;
 			}
 			// end of line
 			if ( SpecialChars::isBreak(hl->ch, Cols > 1) || (outs))
@@ -1853,7 +1885,7 @@
 //???						current.breakXPos = current.line.x;
 //???						for (int j=current.line.firstItem; j <= a; ++j)
 //???							current.breakXPos += itemText.item(j)->glyph.wide();
-
+						double hyphWidth = 0.0;
 						if ((hl->effects() & ScStyle_HyphenationPossible) || hl->ch == SpecialChars::SHYPHEN)
 						{
 							// insert hyphen
@@ -1862,6 +1894,7 @@
 							hl->glyph.grow();
 							hl->glyph.more->glyph = charStyle.font().char2CMap(QChar('-'));
 							hl->glyph.more->xadvance = charStyle.font().charWidth('-', itemText.charStyle(a).fontSize() / 10.0) * (itemText.charStyle(a).scaleH() / 1000.0);
+							hyphWidth = hl->glyph.more->xadvance;
 						}
 						else
 						{
@@ -1876,6 +1909,8 @@
 						{
 							if (opticalMargins & ParagraphStyle::OM_RightHangingPunct)
 								current.line.width += opticalRightMargin(itemText, current.line);
+							else
+								current.line.naturalWidth += hyphWidth;

 							OFs = 0;
 							if (style.alignment() == ParagraphStyle::Rightaligned)
@@ -1902,15 +1937,16 @@
 					{
 						if (a >= current.line.firstItem)
 						{
-							if ((hl->effects() & ScStyle_HyphenationPossible) || hl->ch == SpecialChars::SHYPHEN)
+							if ((hl->effects() & ScStyle_HyphenationPossible) || hl->ch == SpecialChars::SHYPHEN
+									|| current.line.lastItem == 0)
 							{
 								current.itemsInLine = 0;
 								a = current.line.firstItem - 1;
 							}
 							else
 							{
-								--a;
-								--current.itemsInLine;
+								current.itemsInLine = 0;
+								a = current.line.firstItem - 1;
 							}
 						}
 						if (a >= 0)
@@ -1925,17 +1961,17 @@
 							else if (style.lineSpacingMode() == ParagraphStyle::BaselineGridLineSpacing)
 								style.setLineSpacing(m_Doc->typographicSettings.valueBaseGrid);
 						}
-						current.breakLine(itemText, style, firstLineOffset(), a);
+						//current.breakLine(itemText, style, firstLineOffset(), a);
 //						qDebug() << QString("style no break pos %1: %2 (%3)").arg(a).arg(style.alignment()).arg(style.parent());
 //						qDebug() << QString("style nb @%6: %1 -- %2, %4/%5 char: %3").arg(style.leftMargin()).arg(style.rightMargin())
 //							   .arg(style.charStyle().asString()).arg(style.name()).arg(style.parent())
 //							   .arg(a);
-						EndX = current.endOfLine(cl, pf2, style.rightMargin());
-						current.finishLine(EndX);
+						//EndX = current.endOfLine(cl, pf2, style.rightMargin());
+						//current.finishLine(EndX);
 //						qDebug() << QString("no break pos: %1-%2 @ %3 wid %4 nat %5 endX %6")
 //							   .arg(current.line.firstItem).arg(current.line.firstItem)
 //							   .arg(current.line.x).arg(current.line.width).arg(current.line.naturalWidth).arg(EndX);
-						indentLine(itemText, current.line, 0);
+						//indentLine(itemText, current.line, 0);
 					}
 				}
 				if ( outs || SpecialChars::isBreak(hl->ch, (Cols > 1)) )
@@ -1954,9 +1990,12 @@
 						double BotOffset = desc+extra.Bottom+lineCorr;
 						while (!current.isEndOfLine(style.rightMargin()))
 						{
-							current.xPos++;
+							current.xPos += xStep;
 							if (current.isEndOfLine(style.rightMargin()))
 							{
+								lastLineY = current.yPos + 1;
+								if (!preventingAscents)
+									lastLineY += current.line.descent -1;
 								fromOut = false;
 //								qDebug() << QString("layout: next lower2 grid=%1 x %2").arg(style.lineSpacingMode() == ParagraphStyle::BaselineGridLineSpacing).arg(m_Doc->typographicSettings.valueBaseGrid);
 //								qDebug() << QString("nextline: y=%1+%2").arg(current.yPos).arg(style.lineSpacingMode() == ParagraphStyle::BaselineGridLineSpacing? m_Doc->typographicSettings.valueBaseGrid : style.lineSpacing());
@@ -1965,13 +2004,6 @@
 									current.yPos += m_Doc->typographicSettings.valueBaseGrid;
 								else
 									current.yPos += style.lineSpacing();
-								if (current.isEndOfCol(desc) && (current.column+1 == Cols))
-								{
-									goNoRoom = true;
-									MaxChars = a + 1;
-//									qDebug() << QString("go no room 1: %1").arg(a));
-									break;
-								}
 								if (current.hasDropCap)
 								{
 									++DropLinesCount;
@@ -1979,6 +2011,7 @@
 									{
 										current.hasDropCap = false;
 										current.xPos = current.colLeft;
+										maxDX = 0;
 									}
 									else
 										current.xPos = maxDX;
@@ -2000,8 +2033,8 @@
 							// performed at lines 1488-1512 and can trigger hang due to changing region detection
 							//pt1 = QPoint(qRound(current.xPos+extra.Right), static_cast<int>(current.yPos+BotOffset));
 							//pt2 = QPoint(qRound(current.xPos+extra.Right), static_cast<int>(ceil(current.yPos-asce)));
-							pt1 = QPoint(qRound(current.xPos+extra.Right), qRound(current.yPos+BotOffset));
-							pt2 = QPoint(qRound(current.xPos+extra.Right), qRound(ceil(current.yPos-asce)));
+							pt1 = QPoint(static_cast<int>(current.xPos), static_cast<int>(current.yPos+BotOffset));
+							pt2 = QPoint(static_cast<int>(current.xPos), static_cast<int>(ceil(current.yPos-asce)));
 							if (cl.contains(pf2.map(pt1)) && cl.contains(pf2.map(pt2)))
 								break;
 //							else
@@ -2009,14 +2042,7 @@
 						}
 						if (fromOut)
 						{
-							if (current.isEndOfCol(desc) && (current.column+1 == Cols))
-							{
-								goNoRoom = true;
-								MaxChars = a + 1;
-//								qDebug() << QString("go no room 2: %1").arg(a);
-								break;
-							}
-							current.xPos--;
+							current.xPos-=xStep;
 							current.xPos = qMax(current.xPos, current.colLeft);
 						}
 					}
@@ -2033,10 +2059,12 @@
 //						qDebug() << QString("layout: next lower3 grid=%1 x %2").arg(style.lineSpacingMode() == ParagraphStyle::BaselineGridLineSpacing).arg(m_Doc->typographicSettings.valueBaseGrid);


+						lastLineY = current.yPos + 1;
+						if (!preventingAscents)
+							lastLineY += current.line.descent -1;
 						if (style.lineSpacingMode() == ParagraphStyle::BaselineGridLineSpacing)
 						{
 //							qDebug() << QString("next line (grid): y=%1+%2").arg(current.yPos).arg(m_Doc->typographicSettings.valueBaseGrid);
-
 							current.yPos += m_Doc->typographicSettings.valueBaseGrid;
 						}
 						else
@@ -2059,6 +2087,7 @@
 							{
 								current.hasDropCap = false;
 								current.xPos = current.colLeft;
+								maxDX = 0;
 							}
 							else
 								current.xPos = maxDX;
@@ -2077,10 +2106,9 @@
 					}
 				}

-
 				// calc. needed vertical space
 				// Let’s try to change into "calc. _wanted_ vertical space" - pm
-				if (current.itemsInLine != 0)
+				if (current.itemsInLine > 0)
 				{
 					if ( itemText.charStyle(current.line.firstItem).effects() & ScStyle_DropCap)
 					{
@@ -2090,12 +2118,12 @@
 					}
 				}

-				fillInTabLeaders(itemText, current.line);
-
+				if (current.itemsInLine > 1)
+					fillInTabLeaders(itemText, current.line);
 				current.startOfCol = false;
 //				qDebug() << QString("layout: line %1 - %2 @ (%3,%4) wd %5/%6").arg(current.line.firstItem).arg(current.line.lastItem)
 //					   .arg(current.line.x).arg(current.line.y).arg(current.line.naturalWidth).arg(current.line.width);
-				if (current.line.firstItem > current.line.lastItem)
+				if (current.line.firstItem >= current.line.lastItem)
 					; //qDebug() << QString("layout: empty line %1 - %2").arg(current.line.firstItem).arg(current.line.lastItem);
 				else if (current.itemsInLine > 0)
 					itemText.appendLine(current.line);
@@ -2115,6 +2143,7 @@
 					if (current.column < Cols)
 					{
 						current.nextColumn(asce);
+						lastLineY = 0;
 					}
 					else
 					{

 					}
formatting2.patch (25,956 bytes)

cbradney

2011-06-27 19:51

administrator   ~0026493

Ok.. cool.. now the issues shows in Dokument-1.sla and 9436.sla are solved.. but the issue in 0009932 is no longer solved.. :)

cbradney

2011-07-19 19:44

administrator   ~0026614

Cezary, where are you up to with this patch? If it really is going to solve 3 bugs, we should get it in SVN, once it covers them all properly.

cezaryece

2011-09-08 10:30

developer   ~0026837

Look here http://bugs.scribus.net/view.php?id=10251

jghali

2011-10-01 21:54

administrator   ~0026941

Solved by 0010251 patch

Issue History

Date Modified Username Field Change
2010-10-25 06:19 cezaryece New Issue
2010-10-25 06:19 cezaryece File Added: 9436.sla
2010-10-25 06:20 cezaryece Tag Attached: text frames
2010-10-25 06:25 cezaryece Note Added: 0024724
2010-10-25 11:10 cezaryece File Added: Dokument-2.sla
2010-10-25 11:13 cezaryece File Added: Dokument-2-1.5svn.sla
2010-10-25 11:15 cezaryece File Added: Dokument-1.3.9svn.sla
2010-11-29 23:36 tenbear Note Added: 0024925
2010-11-30 06:54 cezaryece Note Added: 0024928
2010-12-01 02:21 christoph_s Assigned To => avox
2010-12-01 02:21 christoph_s Status new => assigned
2011-02-20 12:50 plinnell Target Version => 1.4.1.svn
2011-04-16 10:05 cbradney Target Version 1.4.1.svn => 1.4.1
2011-05-27 09:50 cezaryece File Added: screen.jpg
2011-06-01 08:24 cezaryece File Added: wrong_formating.patch
2011-06-01 08:30 cezaryece Note Added: 0026298
2011-06-01 11:34 ale File Deleted: wrong_formating.patch
2011-06-01 11:34 ale Note Added: 0026299
2011-06-01 12:44 cezaryece File Added: wrong_formating.patch
2011-06-01 12:45 cezaryece File Added: solved.jpg
2011-06-01 12:48 cezaryece Note Added: 0026301
2011-06-02 11:15 cezaryece File Added: wrong_formating_overflow.patch
2011-06-02 11:19 cezaryece Note Added: 0026303
2011-06-02 14:55 cbradney Target Version 1.4.1 => 1.4.0
2011-06-02 14:56 cbradney Note Added: 0026304
2011-06-02 14:56 cbradney Note Added: 0026305
2011-06-05 22:43 jghali Relationship added has duplicate 0010015
2011-06-06 09:26 cezaryece Note Added: 0026323
2011-06-06 09:46 cezaryece Note Edited: 0026323
2011-06-06 09:47 cezaryece Note Edited: 0026323
2011-06-07 06:46 cezaryece Note Added: 0026334
2011-06-07 17:32 ale Relationship added related to 0008538
2011-06-08 13:58 cezaryece Note Added: 0026341
2011-06-08 17:55 ale Relationship added has duplicate 0005891
2011-06-14 13:26 cezaryece File Added: solved2.jpg
2011-06-14 13:28 cezaryece Note Added: 0026393
2011-06-14 13:29 cezaryece File Added: Dokument-1.sla
2011-06-14 13:31 cezaryece Note Edited: 0026393
2011-06-14 18:59 cezaryece File Added: wrong_formating_overflow_v2.patch
2011-06-14 19:03 cezaryece Note Added: 0026394
2011-06-16 09:58 cezaryece Note Added: 0026411
2011-06-21 14:20 cezaryece Note Added: 0026447
2011-06-21 14:20 cezaryece File Added: formatting.patch
2011-06-26 21:09 cbradney Note Added: 0026482
2011-06-27 13:03 cezaryece Note Added: 0026491
2011-06-27 13:04 cezaryece File Added: formatting2.patch
2011-06-27 19:49 cbradney Relationship added related to 0009932
2011-06-27 19:51 cbradney Note Added: 0026493
2011-07-19 19:43 cbradney Relationship added related to 0009902
2011-07-19 19:44 cbradney Note Added: 0026614
2011-09-08 10:30 cezaryece Note Added: 0026837
2011-10-01 21:54 jghali Note Added: 0026941
2011-10-01 21:54 jghali Status assigned => resolved
2011-10-01 21:54 jghali Fixed in Version => 1.4.0svn
2011-10-01 21:54 jghali Resolution open => fixed
2011-10-01 21:54 jghali Assigned To avox => jghali
2011-10-05 20:02 cbradney Relationship added related to 0010251
2011-10-05 20:02 cbradney Status resolved => closed
2015-09-17 20:08 Kunda Category Story Editor / Text Frames => Story Ed/Txt Frames
2015-09-17 20:12 Kunda Category Story Ed/Txt Frames => Story Editor / Text Frames
