View Issue Details

IDProjectCategoryView StatusLast Update
0012847ScribusGraphics / Image Framespublic2024-01-02 19:23
Reporterrainglasz Assigned To
Status confirmedResolutionopen
Platformx86_32OSMS WindowsOS VersionXP
Product Version1.4.4
Target Version1.5.5
Summary0012847: Aligning Text frame bottom with picture frame top moves text
DescriptionAligning a picture frame with a text frame so that the upper boundrary of the picture frame aligns with the lower boundrary of the text frame moves the text to the right, as if the picture frame would overlap.
Steps To ReproduceIn the example file provided, first click the text, then the picture frame,
then align tops of items to bottoms of anchor.
Additional InformationThe picture frame uses the countour line; the behaviour is as if the picture were overlapping the text.
Moreover, undo fails for the disaligned text.

Depends on the picture; works with other pictures.
Maybe a problem of calculation and rounding of numbers.

Same behaviour under 1.4.1 Debian Wheezy


related to 0009821 closedKunda Text (incorrectly) breaks when wrapping around an image frame
related to 0009390 closedjghali When you move a flowing frame out of a flowed frame, the flow is not updated



2014-12-03 07:59


test1.sla (577,294 bytes)


2015-05-15 01:33

updater   ~0035129

Confirmed on 1.5svn r20083 (OSX 10.9.5)


2015-11-02 05:51



2015-11-02 05:52


2) reset contour line.png (16,535 bytes)
2) reset contour line.png (16,535 bytes)


2015-11-02 05:57

reporter   ~0037146

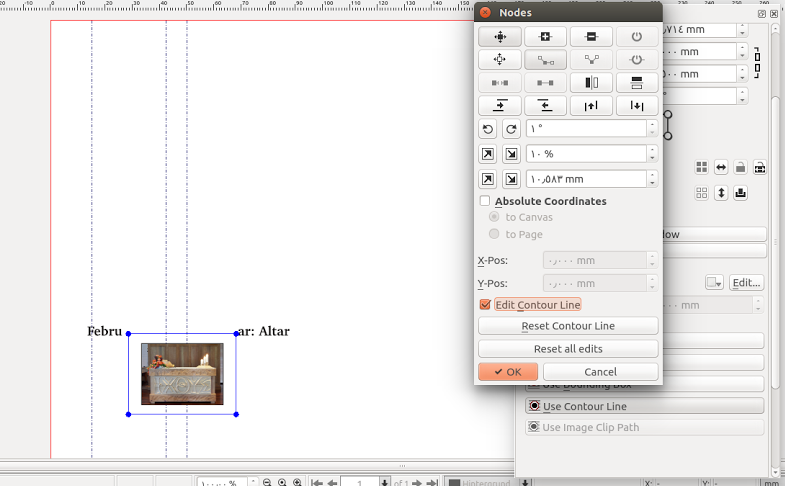

I don't think there is a problem with moving text to the right. Because of using contour line for the picture the text will flow around the contour line when we align the Text frame bottom with picture frame top as in image 1. If we reset the contour line to the original the text will not behave as explained above, see image 2.


2015-11-05 12:37

updater   ~0037258

Moving the image with the up arrow up to the text will trigger the bug in 0012847

Issue History

Date Modified Username Field Change
2014-12-03 07:59 rainglasz New Issue
2014-12-03 07:59 rainglasz File Added: test1.sla
2015-05-15 01:33 Kunda Note Added: 0035129
2015-05-15 01:33 Kunda Status new => confirmed
2015-05-15 01:33 Kunda Target Version => 1.5.1
2015-09-17 20:10 Kunda Category Graphics / Image Frames => Graphics/Img Frames
2015-09-17 20:11 Kunda Category Graphics/Img Frames => Graphics / Image Frames
2015-11-02 05:51 IbtisamN File Added: 1)Text flow around bounding of contour line.png
2015-11-02 05:52 IbtisamN File Added: 2) reset contour line.png
2015-11-02 05:52 IbtisamN Tag Attached: HOST-Oman
2015-11-02 05:57 IbtisamN Note Added: 0037146
2015-11-05 12:28 Kunda Sticky Issue No => Yes
2015-11-05 12:36 Kunda Relationship added related to 0009390
2015-11-05 12:37 Kunda Note Added: 0037258
2015-11-24 01:13 Kunda Relationship added related to 0009821
2016-01-23 17:16 cbradney Target Version 1.5.1 => 1.5.3
2016-12-08 22:04 Kunda Target Version 1.5.3 => 1.5.4
2018-04-30 12:12 jghali Target Version 1.5.4 => 1.5.5
2024-01-02 19:23 cbradney Sticky Issue Yes => No
