View Issue Details

IDProjectCategoryView StatusLast Update
0012892ScribusUsabilitypublic2024-09-16 20:54
ReporterPeterBenedek Assigned Tonitramr
PrioritynormalSeverityminorReproducibilityalways
Status closedResolutionfixed
Platformx86OSLinux Mint OS Version17 (32bit)
Product Version1.5.0svn
Target Version1.7.0Fixed in Version1.6.3.svn
Summary0012892: Color Management: Color Menu width increases with each use of Color Management feature
DescriptionLink this video: https://www.dropbox.com/s/5rc0r4txwsgcjxs/Sample.avi?dl=0

In use, the color selector width increases.
Steps To Reproduce1) Open new document
2) Make Text Frame
3) Insert text in Text Frame

4) Turn On or Off the "Toggle Color Managment System" switch
5) Select (Open): Properties -- Text -- Color&Effect -- Color Selector
6) Look the width
7) Goto 4
TagsNo tags attached.
PatchYes

Relationships

has duplicate 0014163 closedPeterBenedek Font Color Menu in Properties Palette Keeps Growing
has duplicate 0016789 closed Unable to change colour of text after several times of usage the item
has duplicate 0017236 closed Much too wide dropdown color select menu

Activities

Kunda

2015-01-24 12:19

updater   ~0034384

Last edited: 2015-01-26 15:11

Can reproduce on 1.5svn r19768 with just activating a text box (without text)
All you need to do is toggle the 'Color Management' button on/off (2 clicks) for 5-6 iterations to visually confirm this bug.

1) Open new document
2) Make Text Frame
3) Activate and disable "Toggle Color Managment System" switch a dozen times
4) Select (Open): Properties -- Text -- Color&Effect -- Color Selector
5) Look at the width

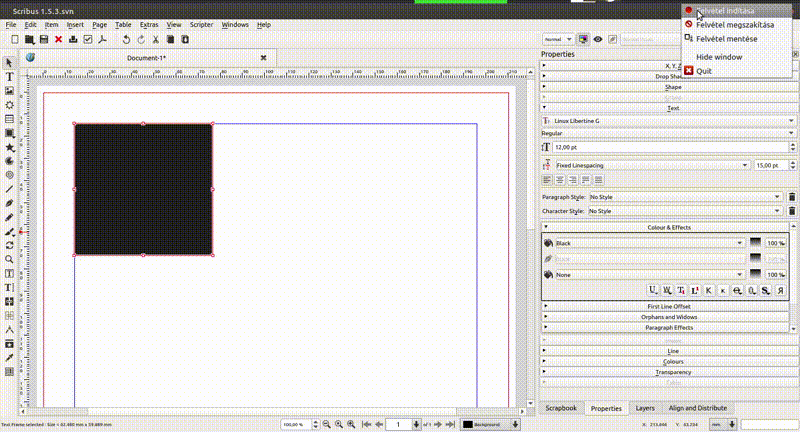

PeterBenedek

2016-06-21 07:40

developer


PeterBenedek

2016-06-21 07:45

developer   ~0041697

Last edited: 2016-06-21 07:46

1) Open new document (TAB 1)
2) Make Text Frame
3) Open new document (TAB 2)
4) switching TAB 1 and TAB 2 (10×)
5) Select (Open): Properties -- Text -- Color&Effect -- Color Selector
6) Look at the width

JLuc

2022-05-09 17:03

developer   ~0049640

0016789 also concludes « After several times of doing so, the checkbox is growing wider and wider until it reaches the left border of the screen. When reaching it, it is impossible to change the color anymore. I’m running an iMac mini (Silicon). When I restart the Program the sequence starts again. »

JLuc

2024-06-26 06:47

developer   ~0051228

Still happens in 1.6.2 , leading to screen-width dropdown

nitramr

2024-07-01 18:38

developer   ~0051230

Fixed!

On each color list update request, the list width increase by 24 pixels. I removed that logic and add a normal size policy to the list to fill the combo box dropdown container.
colorcombo_2024-07-01_01.patch (6,611 bytes)
Index: scribus/ui/colorcombo.cpp
===================================================================
--- scribus/ui/colorcombo.cpp	(Revision 26191)
+++ scribus/ui/colorcombo.cpp	(Arbeitskopie)
@@ -15,14 +15,7 @@
 #include "commonstrings.h"
 // #include "qdebug.h"

-ColorCombo::ColorCombo(QWidget* parent) : QComboBox(parent)
-{
-	setEditable(false);
-	ColorListBox* lb = new ColorListBox(this);
-	setModel( lb->model() );
-	setItemDelegate( lb->itemDelegate() );
-	setView( lb );
-}
+ColorCombo::ColorCombo(QWidget* parent) : ColorCombo(false, parent) {}

 ColorCombo::ColorCombo(ColorCombo::PixmapType type, QWidget* parent) : QComboBox(parent)
 {
@@ -36,6 +29,7 @@
 	setModel( lb->model() );
 	setItemDelegate( lb->itemDelegate() );
 	setView( lb );
+	view()->setSizePolicy(QSizePolicy::MinimumExpanding, QSizePolicy::Minimum);
 }

 ColorCombo::ColorCombo(bool rw, QWidget* parent) : QComboBox(parent)
@@ -45,6 +39,7 @@
 	setModel( lb->model() );
 	setItemDelegate( lb->itemDelegate() );
 	setView( lb );
+	view()->setSizePolicy(QSizePolicy::MinimumExpanding, QSizePolicy::Minimum);
 }


Index: scribus/ui/colorlistbox.cpp
===================================================================
--- scribus/ui/colorlistbox.cpp	(Revision 26191)
+++ scribus/ui/colorlistbox.cpp	(Arbeitskopie)
@@ -175,22 +175,8 @@
 int ColorListBox::initialized;
 int ColorListBox::sortRule;

-ColorListBox::ColorListBox(QWidget * parent)
-	: QListView(parent)
-{
-	if (initialized != 12345)
-		sortRule = 0;
-	initialized = 12345;
-	QListView::setModel(new ColorListModel(this));
-	setPixmapType(ColorListBox::widePixmap);
+ColorListBox::ColorListBox(QWidget * parent) : ColorListBox(ColorListBox::widePixmap, parent) {}

-	connect(this, SIGNAL(clicked(QModelIndex)), this, SLOT(emitItemClicked(QModelIndex)));
-	connect(this, SIGNAL(doubleClicked(QModelIndex)), this, SLOT(emitItemDoubleClicked(QModelIndex)));
-	connect(this->selectionModel(), SIGNAL(currentChanged(QModelIndex,QModelIndex)), this, SLOT(emitCurrentChanged(QModelIndex,QModelIndex)));
-	connect(this->selectionModel(), SIGNAL(selectionChanged(QItemSelection,QItemSelection)), this, SIGNAL(itemSelectionChanged()));
-	connect(this, SIGNAL(contextMenuRequested()), this, SLOT(slotRightClick()));
-}
-
 ColorListBox::ColorListBox(ColorListBox::PixmapType type, QWidget * parent)
 	: QListView(parent)
 {
Index: scribus/ui/propertywidget_textcolor.cpp
===================================================================
--- scribus/ui/propertywidget_textcolor.cpp	(Revision 26191)
+++ scribus/ui/propertywidget_textcolor.cpp	(Arbeitskopie)
@@ -196,9 +196,6 @@
 	fillColor->setColors(m_doc->PageColors, true);
 	strokeColor->setColors(m_doc->PageColors, false);
 	backColor->setColors(m_doc->PageColors, true);
-	fillColor->view()->setMinimumWidth(fillColor->view()->maximumViewportSize().width() + 24);
-	strokeColor->view()->setMinimumWidth(strokeColor->view()->maximumViewportSize().width() + 24);
-	backColor->view()->setMinimumWidth(backColor->view()->maximumViewportSize().width() + 24);

 	if (m_item)
 		setCurrentItem(m_item);
Index: scribus/ui/search.cpp
===================================================================
--- scribus/ui/search.cpp	(Revision 26191)
+++ scribus/ui/search.cpp	(Arbeitskopie)
@@ -147,7 +147,6 @@
 	searchStrokeValue->setEditable(false);
 	searchStrokeValue->setPixmapType(ColorCombo::fancyPixmaps);
 	searchStrokeValue->setColors(doc->PageColors, true);
-	searchStrokeValue->view()->setMinimumWidth(searchStrokeValue->view()->maximumViewportSize().width() + 24);
 	setCurrentComboItem(searchStrokeValue, doc->currentStyle.charStyle().strokeColor());
 	searchStrokeValue->setEnabled(false);
 	SearchLayout->addWidget( searchStrokeValue, 8, 1 );
@@ -233,7 +232,6 @@
 	replaceFillValue->setEditable(false);
 	replaceFillValue->setPixmapType(ColorCombo::fancyPixmaps);
 	replaceFillValue->setColors(doc->PageColors, true);
-	replaceFillValue->view()->setMinimumWidth(replaceFillValue->view()->maximumViewportSize().width() + 24);
 	setCurrentComboItem(replaceFillValue, doc->currentStyle.charStyle().fillColor());
 	replaceFillValue->setEnabled(false);
 	ReplaceLayout->addWidget( replaceFillValue, 6, 1 );
@@ -244,7 +242,6 @@
 	replaceStrokeValue->setEditable(false);
 	replaceStrokeValue->setPixmapType(ColorCombo::fancyPixmaps);
 	replaceStrokeValue->setColors(doc->PageColors, true);
-	replaceStrokeValue->view()->setMinimumWidth(replaceStrokeValue->view()->maximumViewportSize().width() + 24);
 	setCurrentComboItem(replaceStrokeValue, doc->currentStyle.charStyle().strokeColor());
 	replaceStrokeValue->setEnabled(false);
 	ReplaceLayout->addWidget( replaceStrokeValue, 8, 1 );
Index: scribus/ui/smcellstylewidget.cpp
===================================================================
--- scribus/ui/smcellstylewidget.cpp	(Revision 26191)
+++ scribus/ui/smcellstylewidget.cpp	(Arbeitskopie)
@@ -173,5 +173,4 @@
 	fillColor->clear();

 	fillColor->setColors(colors, true);
-	fillColor->view()->setMinimumWidth(fillColor->view()->maximumViewportSize().width()+24);
 }
Index: scribus/ui/smcstylewidget.cpp
===================================================================
--- scribus/ui/smcstylewidget.cpp	(Revision 26191)
+++ scribus/ui/smcstylewidget.cpp	(Arbeitskopie)
@@ -167,9 +167,6 @@
 	fillColor_->setColors(colors, true);
 	strokeColor_->setColors(colors, true);
 	backColor_->setColors(colors, true);
-	fillColor_->view()->setMinimumWidth(fillColor_->view()->maximumViewportSize().width()+24);
-	strokeColor_->view()->setMinimumWidth(strokeColor_->view()->maximumViewportSize().width()+24);
-	backColor_->view()->setMinimumWidth(backColor_->view()->maximumViewportSize().width()+24);
 }

 void SMCStyleWidget::handleUpdateRequest(int updateFlags)
Index: scribus/ui/smpstylewidget.cpp
===================================================================
--- scribus/ui/smpstylewidget.cpp	(Revision 26191)
+++ scribus/ui/smpstylewidget.cpp	(Arbeitskopie)
@@ -185,7 +185,6 @@
 {
 	backColor_->clear();
 	backColor_->setColors(colors, true);
-	backColor_->view()->setMinimumWidth(backColor_->view()->maximumViewportSize().width()+24);
 }

 void SMPStyleWidget::fillBulletStrEditCombo()
Index: scribus/ui/smtablestylewidget.cpp
===================================================================
--- scribus/ui/smtablestylewidget.cpp	(Revision 26191)
+++ scribus/ui/smtablestylewidget.cpp	(Arbeitskopie)
@@ -170,7 +170,6 @@
 	fillColor->clear();

 	fillColor->setColors(colors, true);
-	fillColor->view()->setMinimumWidth(fillColor->view()->maximumViewportSize().width()+24);
 }


colorcombo_2024-07-01_01.patch (6,611 bytes)

Issue History

Date Modified Username Field Change
2015-01-16 14:44 PeterBenedek New Issue
2015-01-24 12:19 Kunda Note Added: 0034384
2015-01-24 12:19 Kunda Status new => confirmed
2015-01-24 12:19 Kunda Target Version => 1.5.1
2015-01-24 12:19 Kunda Summary Color select width increases => Color Management Bug: Color Menu width increases with each use of Color Management feature
2015-01-24 12:19 Kunda Steps to Reproduce Updated
2015-01-26 15:11 Kunda Note Edited: 0034384
2015-02-02 00:27 Kunda Summary Color Management Bug: Color Menu width increases with each use of Color Management feature => Color Management: Color Menu width increases with each use of Color Management feature
2016-01-23 17:16 cbradney Target Version 1.5.1 => 1.5.3
2016-06-19 05:52 PeterBenedek Relationship added duplicate of 0014163
2016-06-19 05:57 PeterBenedek Relationship deleted 0014163
2016-06-19 05:57 PeterBenedek Relationship added has duplicate 0014163
2016-06-21 07:40 PeterBenedek File Added: 0012892.gif
2016-06-21 07:45 PeterBenedek Note Added: 0041697
2016-06-21 07:46 PeterBenedek Note Edited: 0041697
2016-12-08 22:04 Kunda Target Version 1.5.3 => 1.5.4
2022-05-07 14:49 PeterBenedek Relationship added related to 0016789
2022-05-09 17:01 JLuc Relationship replaced has duplicate 0016789
2022-05-09 17:03 JLuc Note Added: 0049640
2024-06-25 15:06 PeterBenedek Relationship added has duplicate 0017236
2024-06-26 06:47 JLuc Note Added: 0051228
2024-07-01 18:36 nitramr Assigned To => nitramr
2024-07-01 18:36 nitramr Status confirmed => assigned
2024-07-01 18:38 nitramr Note Added: 0051230
2024-07-01 18:38 nitramr File Added: colorcombo_2024-07-01_01.patch
2024-07-01 18:40 nitramr Status assigned => resolved
2024-07-01 18:40 nitramr Resolution open => fixed
2024-07-01 18:51 nitramr Patch No => Yes
2024-07-08 13:03 nitramr Target Version 1.5.4 => 1.7.0
2024-07-10 21:26 cbradney Fixed in Version => 1.6.3.svn
2024-09-16 20:54 cbradney Status resolved => closed
