Summary0013211: Snap to bleeds
Descriptionwe can now get the items to snap to the page border, it would be wonderful if they would also snap to the bleed.
Tagsbleed, patch, snapping
PatchYes

Relationships

has duplicate 0014606 assignedcbradney Bleed should override page margins when using the Shift shortcut for creating frames

Activities

ale

2015-07-07 13:31

manager   ~0035681

since one should mostly not set the size to the page width/height, but always use the bleed if available we could rather have a switch in the preferences / document setting to use the one and the other only (that way we avoid the conflict in snapping when due to the zoom they are too close)

but, mostly, we always want to snap to the bleeds if any are defined.

ale

2016-05-23 09:35

manager   ~0041328

i guess we should replace snapping to page to snapping to bleeds (and if bleeds are 0, it will snap to page)

i don't see a reason someone would want to snap to the page, if she has set a bleed...

ale

2017-02-07 09:24

manager   ~0043454

the latest one is the good one: just snap to the bleed.

sonejostudios

2019-08-13 06:21

reporter   ~0046457

yes, please, implement this!
it is just terrible annoying to work with bleeds without snapping...

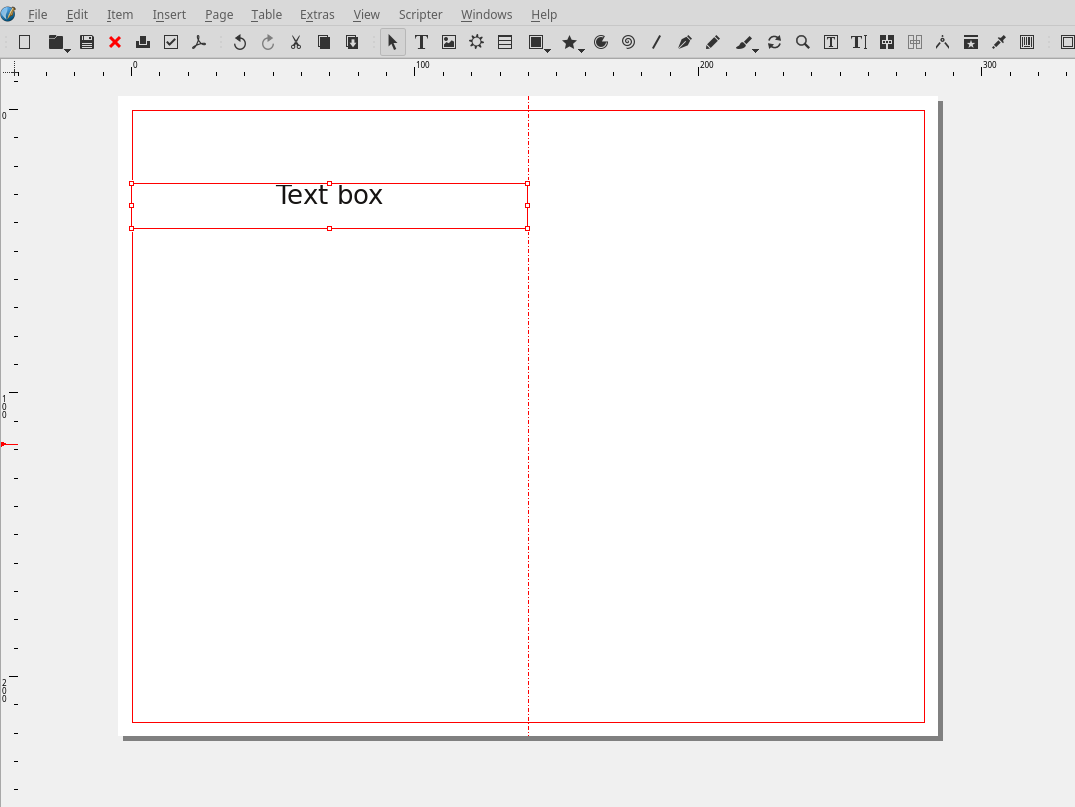

IMO snap to page should be kept, because one might want to snap some text boxes to page border instead of bleed, if the page is going to be folded. E.g for folded flyers, CD-digipacks, Vinyl-covers, etc.


ale

2019-08-13 08:21

manager   ~0046458

i'm really not convinced that i would want the first letter of a text to start on the middle fold of a booklet... but if you really want it, you can always add a guide at 0...
imo easier to do that rather than fighting with two snapping points (bleed and border) that are 3 mm from each other...

and in your example, no, i'm not sure that the result will look right... the centered text will probably look off center.

sonejostudios

2019-08-14 07:00

reporter   ~0046460

You are definitely right, I'll just add guides around page for my needs, so it's fine!
In my example, the 3mm bleed will be cut out after printing, so the text will be centered (as far as I could experience in the past).
Anyway, I definitely think it is more important to snap to bleed than to page borders.

As a workaround for bleed snapping, I wrote a script to add guides around page (and around objects), with the possibility to adjust the distance to the page border (or object). With this script it is really easy to set guides at bleed, at page border, etc etc. Maybe it might be an idea to implement in scribus under "Manage guides" ?

https://github.com/sonejostudios/ScribusGuides

ale

2019-08-14 18:30

manager   ~0046463

i didn't notice that you do not have margins in your screenshot.

imo, the right way to do that would be to define 0 mm margins. since this seems to be what you want...
then you will have a snapping to the page border and the bleeds.

sonejostudios

2019-08-15 09:27

reporter   ~0046464

you are definitely right, that's the way to go! :)

ale

2019-08-16 09:02

manager   ~0046467

i have a working patch that replaces snapping to the page border by snapping to the bleeds.

i'm cleaning it up and will post it later...

sonejostudios

2019-08-16 09:36

reporter   ~0046468

hey ale,
this is great, thanks you!

PeterBenedek

2019-08-16 17:36

developer   ~0046469

Hi sonejostudios
This script is fantastic. Thanks for you.

ale

2019-08-17 08:15

manager   ~0046470

here is my patch, with some refactoring...

there is one thing i don't get:

what are GxM and GyM? wouldn't it be better if the values assigned to those variables would be kept internal to the set functions and the function would return a boolean that tell if they have modified the x and y values?

snap-to-bleed.diff (5,900 bytes)
