Summary0015008: Exported pdf doesn't show shadows or transparency from imported pdf

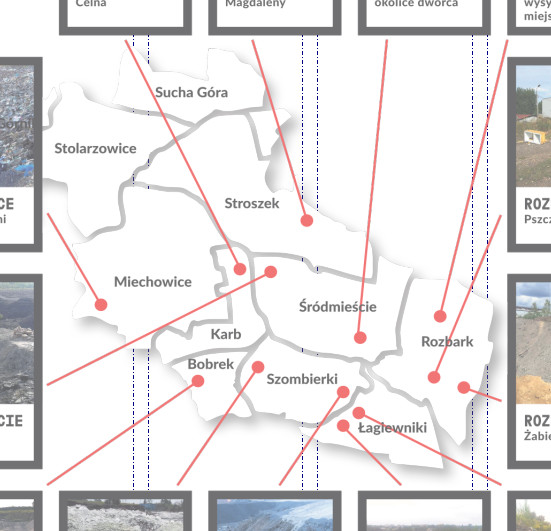

DescriptionPlease take a look @ screenshot. Imported and placed pdf is not mine and most probably contains shadow effects with transparency. Scribus displays it OK but export is messed (I export in pdf 1.3). I can send source pdf privately and of course help to track this, just guide me.
Link to full exported pdf: http://gazetabytomska.pl/wp-content/uploads/2017/09/kliknij-tu-2.pdf
TagsNo tags attached.
PatchNo

Relationships

related to 0000876 confirmed Implement a transparency flattener

Activities

Eneen

2017-10-05 07:54

reporter


Eneen

2017-10-05 08:05

reporter   ~0044475

Ok, when I export into pdf 1.3 transparencies are lost. But I usually export transparencies and they are flattened (to white?). Question here: can Scribus flatten shadows during export to lower pdf version?

ale

2017-10-05 08:32

manager   ~0044477

no scribus cannot flatten...

Eneen

2017-10-05 09:07

reporter   ~0044481

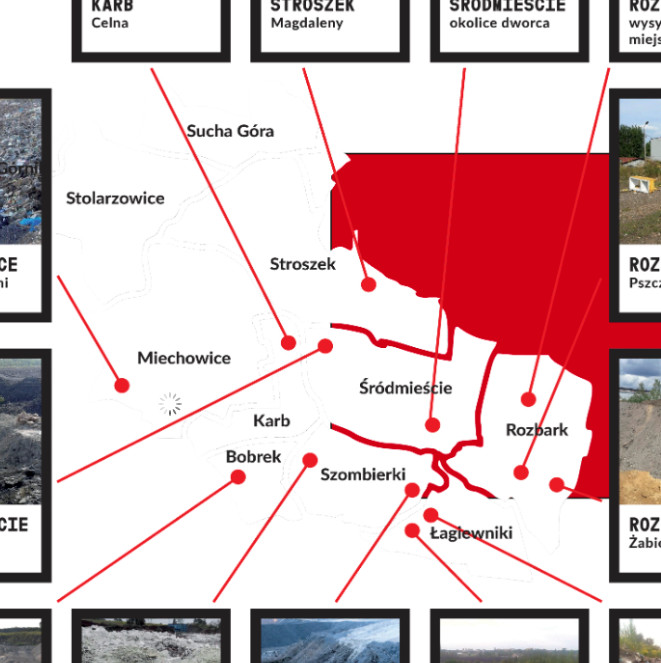

Oh I see. So PDF is imported and rasterized by GS. Then during export depending on PDF version it exports transparency or not. But take a look @ screen, red rectangle below map is visible, so only shadows are not exported with PDF 1.3 (they look fine in PDF 1.5). It seems like PDF 1.3 supports only full transparency mode.
Maybe it's possible to add preflight check for > 1.3 features?

jghali

2017-10-05 09:31

administrator   ~0044483

Preflight verifier already checks for PDF > 1.3 features if you select PDF 1.3 preflight profile.
Shadow effects use PDF transparency which came only with PDF 1.4 and hence require PDF >= 1.4.
