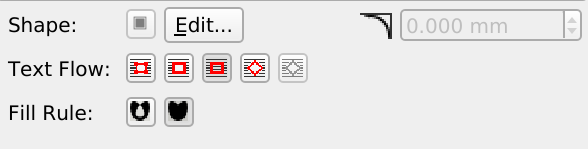

Summary0015811: [PATCH] Indigo UI: shrink the "shape" tab of the properties palette
Descriptioni've starting to look again at the proposal made by martin in the indigo project.

i'm trying to find the things that are easy enough to implement in do it.

the first step has been to shrink the size of the shape panel of the properties palette.

in martin's proposal, the fill rule was missing. i've found 0012277 that suggest using inkscape icons and i did so.
i also used the same tooltips as in inkscape.
(i'd like to avoid using a full line for the fill rules, but i could not find a good solution for now).

i've made a pull request on gitlab for review:

https://gitlab.com/scribus/scribus/merge_requests/5

the appimage is here:
https://gitlab.com/a.l.e/scribus/-/jobs/289677481/artifacts/file/Scribus-nightly-x86_64.AppImage
TagsNo tags attached.
PatchYes

Relationships

related to 0012277 closedale Simplify UI of even-odd vs. nonzero filling rules
related to 0015898 assignedale PP -- Shape: radius of corner function in every case becomes active, if you use the default shapes (square) tool
related to 0010409 assignedale [PATCH] Improve access to contour editing
related to 0015893 assignedale Margin for images
