View Issue Details

IDProjectCategoryView StatusLast Update
0016443ScribusStory Editor / Text Framespublic2021-01-24 20:17
Reporterregus_pregus Assigned Tojghali
PrioritynormalSeveritymajorReproducibilityalways
Status resolvedResolutionfixed
PlatformPCOSWindowsOS Version7 SP1
Product Version1.5.6
Target VersionFixed in Version1.5.7.svn
Summary0016443: Linked text boxes: text re-starts from beginning when text is displaced entirely from one of the linked boxes
DescriptionIn a chain of three linked text frames the text restarts from the beginning in a third text box when text is displaced completely from the second text frame by an image frame floating on top instead of continuing from where it stopped in the first text frame. See attached file for a repro.
Steps To ReproduceSee attached file for a repro.

Manual repro (if not using attached file):
0) Create a file with three pages
1) Place a text frame on each page
2) Link all three text frames in the chain from page 1 to page 2 to page 3
3) Place a long multi-paragraph text in the first text frame using Story Editor. Make sure that paragraphs are longer than one line. The text will overflow from page 1 to page 2 to page 3 as expected
4) Do not assign any orphan/widow control to the paragraph style yet - make sure no orphan/widow controls are on!
5) Add an image box to page 2
6) Configure image box so that text flows around the shape of this image box. The text on page 2 will flows around the image as expected
7) Enlarge the image box on page 2 so that it occupies the entire page, including margins and bleeds. The text will be displaced entirely from the text frame of page 2 and will overflow and continue on page 3 from page 1, as expected (at this point text frame on page 2 is effectively doing nothing, which is what we want).
8) Change the orphan/widow control for default paragraph style to either "don't separate first 1 line" or "do not split the paragraph". Apply changes. Now the text in text frame on page 3 will restart from the beginning of the text on page 1, making page 3 look exactly like page 1 instead of continuing the text from page 1. Notice that "don't separate last 1 lines" does not lead to the problem, only first lines or entire paragraph.
Tagstext frames
PatchNo

Activities

regus_pregus

2021-01-24 03:19

reporter

Linked text frames trouble.sla (20,692 bytes)

utnik

2021-01-24 07:51

updater   ~0048745

i can confirm the issue with scribus1.5.7.svn-r24369.

PeterBenedek

2021-01-24 08:05

developer   ~0048746

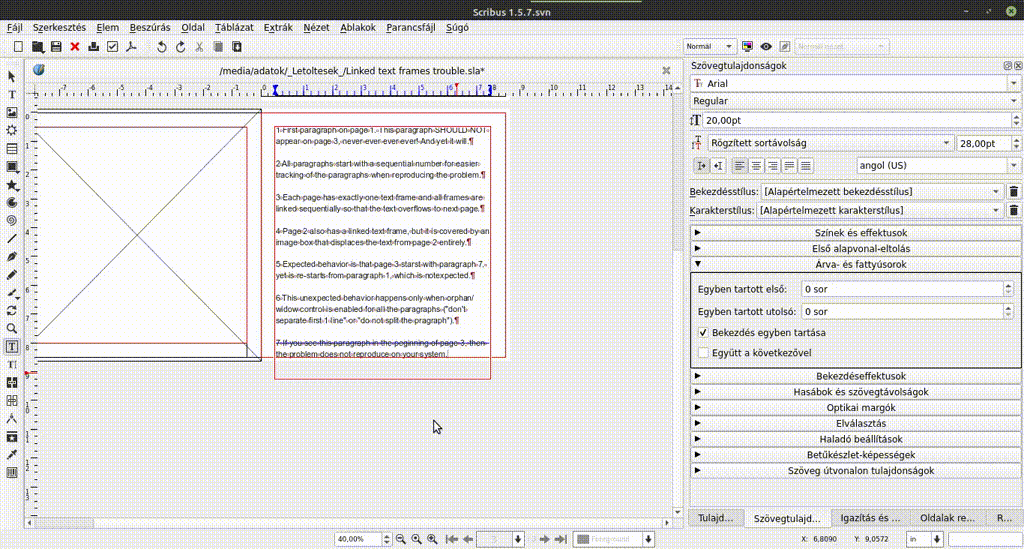

Please try it: Press Enter the end of last "paragraph". The fault is disappear.

Seems, this fault is related the missing "end of character" (in the Scribus the last paragraph is not paragraph): 0016084

PeterBenedek

2021-01-24 08:14

developer


utnik

2021-01-24 08:44

updater   ~0048747

you're right, it looks as it's related to 0016084 – one more reason to look closer at this 'end of paragraph' issue.
how do other programs handle this?

PeterBenedek

2021-01-24 20:16

developer   ~0048752

I watched jghali's patch and seems I was wrong, it isn't related to 0016084 (only it is similar), therefore I delete the related ticket.

Issue History

Date Modified Username Field Change
2021-01-24 03:19 regus_pregus New Issue
2021-01-24 03:19 regus_pregus Tag Attached: text frames
2021-01-24 03:19 regus_pregus File Added: Linked text frames trouble.sla
2021-01-24 07:51 utnik Note Added: 0048745
2021-01-24 08:05 PeterBenedek Note Added: 0048746
2021-01-24 08:10 PeterBenedek File Added: EndOfParagraph.gif
2021-01-24 08:12 PeterBenedek File Deleted: EndOfParagraph.gif
2021-01-24 08:14 PeterBenedek File Added: EndOfParagraph.gif
2021-01-24 08:44 utnik Note Added: 0048747
2021-01-24 08:44 utnik Relationship added related to 0016084
2021-01-24 08:47 utnik Relationship added related to 0013135
2021-01-24 14:36 jghali Priority urgent => normal
2021-01-24 16:59 jghali Assigned To => jghali
2021-01-24 16:59 jghali Status new => resolved
2021-01-24 16:59 jghali Resolution open => fixed
2021-01-24 16:59 jghali Fixed in Version => 1.5.7.svn
2021-01-24 20:16 PeterBenedek Note Added: 0048752
2021-01-24 20:17 PeterBenedek Relationship deleted related to 0016084
2021-01-24 20:17 PeterBenedek Relationship deleted related to 0013135
