View Issue Details

Jump to NotesJump to History
IDProjectCategoryView StatusDate SubmittedLast Update
0009614ScribusGeneralpublic2010-12-24 17:102021-03-23 06:25
Reportercharette.s Assigned Tojghali
PrioritynormalSeverityminorReproducibilityalways
Status closedResolutionfixed
Product Version1.5.0svn
Fixed in Version1.5.7.svn
Summary0009614: Non breaking spaces look the same as normal spaces when "Show Control Characters" is checked
DescriptionThere's no way to make the difference between spaces and nbsp since they both look the same. I spoke with vox_@irc.freenode.net#scribus and he had a look at the code. He said: "According to the code it should fill nbspaces and use an open circle for normal spaces" which it doesn't.
Steps To ReproduceInsert a space and a non-breaking space in a text frame and check view > show control character.

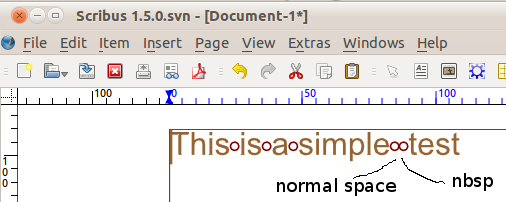

Additional Informationhttp://dl.dropbox.com/u/2759157/nbsp.png (attached to ticket)
Tags#pending, #rottenpatch, control characters, patch, spacing
PatchYes

Relationships

related to 0013373 new No way to distinguish a common space from a non-breaking space for frames with Russian text
related to 0005592 new display narrow no-break space (U+202f) in story editor
has duplicate 0016468 closedjghali protected space isn´t distinguishable from normal space when turning on controll signs
related to 0010301 new All types of non breaking spaces should be displayed as red underscore in story editor
related to 0013892 closedfschmid Opening a file created with Scribus 1.4.x, inserting any type of spaces except nbsp (non-breaking space) is disabled
related to 0009615 new Find a way to display all kind of spaces (thin, thick, mid, etc) differently when "Show Control Character" is enabled
child of 0004004 acknowledged Metabug: Typographic spacing

Activities

ale

2012-12-07 18:33

manager   ~0029340

... i'll have a look at it...

ale

2012-12-13 08:25

manager   ~0029363

the glyph seems to be drawn in void PageItem::drawGlyphs(). the problem seems to be that glyph is set to 32 for both the nbsp and the normal space...

pygmee

2012-12-13 15:45

developer   ~0029364

yes, scribus has to improve space support. Especially we should try to keep all kind of space even if they are not included in the font. I had a python script that nearly did that by attaching a default font with char style to special spaces, but i guess something better has to be done and included as a default or preference.
Plus all kind of spaces should have a different indicator to show the user that what he done (like char insertion) has been taken in account correctly even if it doesn't show as width on page.

ale

2012-12-13 18:37

manager   ~0029365

i've to look further at it, but i'm still wondering why my epub exporter sees a difference between the two spaces and the drawGlyphs() function not...

pygmee

2012-12-13 23:15

developer   ~0029368

I included some changes here and there and i know have a real differnce in display with normal space. But i could succeed in display properly Nbspaces. It seems there are several places where nbspaces are replace with Qchar(' '). Could it be the problem ?
strangely. Nbspaces are correctly detected and displayed in storyeditor. But should display them the same way there.
I polished the space display (too heavy). I think i'll go on with other specialChars.

pygmee

2012-12-13 23:15

developer

NBspace.diff (6,530 bytes)
Index: scribus/pageitem.cpp
===================================================================
--- scribus/pageitem.cpp	(révision 17956)
+++ scribus/pageitem.cpp	(copie de travail)
@@ -2449,10 +2449,10 @@
                (glyph == font.char2CMap(QChar(' ')) || glyph >=  ScFace::CONTROL_GLYPHS))
        {
                bool stroke = false;
-		if (glyph >=  ScFace::CONTROL_GLYPHS)
+        if (glyph >=  ScFace::CONTROL_GLYPHS)
                        glyph -= ScFace::CONTROL_GLYPHS;
                else
-			glyph = 32;
+            glyph = 32;
                QTransform chma, chma4, chma5;
                FPointArray points;
                if (glyph == SpecialChars::TAB.unicode())
@@ -2480,17 +2480,24 @@
                        points = m_Doc->symNewLine.copy();
                        chma4.translate(glyphs.xoffset, glyphs.yoffset-((style.fontSize() / 10.0) * glyphs.scaleV * 0.4));
                }
-		else if (glyph == SpecialChars::NBSPACE.unicode() ||
-				 glyph == 32)
+        else if (glyph == 32)
                {
                        stroke = (glyph == 32);
-			points = m_Doc->symNonBreak.copy();
-			chma4.translate(glyphs.xoffset, glyphs.yoffset-((style.fontSize() / 10.0) * glyphs.scaleV * 0.4));
+            points = m_Doc->symNonBreak.copy();
+            chma4.scale(0.4,0.4);
+            chma4.translate(glyphs.xoffset+4, glyphs.yoffset-((style.fontSize() / 10.0) * glyphs.scaleV * 0.8));
                }
-		else if (glyph == SpecialChars::NBHYPHEN.unicode())
+        else if (glyph == SpecialChars::NBSPACE.unicode())
+        {
+            stroke = (glyph == 32);
+            points = m_Doc->symNonBreak.copy();
+            chma4.translate(glyphs.xoffset, glyphs.yoffset-((style.fontSize() / 10.0) * glyphs.scaleV * 0.8));
+        }
+        else if (glyph == SpecialChars::NBHYPHEN.unicode())
                {
-			points = font.glyphOutline(font.char2CMap(QChar('-')), style.fontSize() / 100);
+            points = font.glyphOutline(font.char2CMap(QChar('-')), style.fontSize() / 100);
                        chma4.translate(glyphs.xoffset, glyphs.yoffset-((style.fontSize() / 10.0) * glyphs.scaleV));
+            chma4.scale(0.5,0.5);
                }
                else if (glyph == SpecialChars::SHYPHEN.unicode())
                {
@@ -2522,8 +2529,8 @@
                if (stroke)
                {
                        QColor tmp = p->pen();
-			p->setPen(p->brush(), 1, Qt::SolidLine, Qt::FlatCap, Qt::MiterJoin);
-			p->setLineWidth(style.fontSize() * glyphs.scaleV / 200.0);
+            p->setPen(p->brush(), 1, Qt::SolidLine, Qt::FlatCap, Qt::MiterJoin);
+            p->setLineWidth(style.fontSize() * glyphs.scaleV / 400.0);
                        p->strokePath();
                        p->setPen(tmp, 1, Qt::SolidLine, Qt::FlatCap, Qt::MiterJoin);
                }
@@ -2540,9 +2547,9 @@
                }
                return;
        }
-	else if (glyph == (ScFace::CONTROL_GLYPHS + SpecialChars::NBSPACE.unicode()) ||
+    else if (glyph == (ScFace::CONTROL_GLYPHS + SpecialChars::NBSPACE.unicode()) ||
                         glyph == (ScFace::CONTROL_GLYPHS + 32))
-		glyph = font.char2CMap(QChar(' '));
+        glyph = font.char2CMap(QChar(' '));
        else if (glyph == (ScFace::CONTROL_GLYPHS + SpecialChars::NBHYPHEN.unicode()))
                glyph = font.char2CMap(QChar('-'));

Index: scribus/scribusdoc.h
===================================================================
--- scribus/scribusdoc.h	(révision 17956)
+++ scribus/scribusdoc.h	(copie de travail)
@@ -1352,7 +1352,8 @@
        FPointArray symNewLine;
        FPointArray symTab;
        FPointArray symNonBreak;
-	FPointArray symNewCol;
+    FPointArray symSpace;
+    FPointArray symNewCol;
        FPointArray symNewFrame;

        Hyphenator * docHyphenator;
Index: scribus/fonts/scface.cpp
===================================================================
--- scribus/fonts/scface.cpp	(révision 17956)
+++ scribus/fonts/scface.cpp	(copie de travail)
@@ -342,11 +342,11 @@
 {
        if (ch == SpecialChars::LINEBREAK || ch == SpecialChars::PARSEP
                || ch == SpecialChars::FRAMEBREAK || ch == SpecialChars::COLBREAK
-		|| ch == SpecialChars::TAB || ch == SpecialChars::SHYPHEN
-		 || ch == SpecialChars::ZWSPACE || ch == SpecialChars::ZWNBSPACE || ch==SpecialChars::OBJECT)
+        || ch == SpecialChars::TAB || ch == SpecialChars::SHYPHEN
+         || ch == SpecialChars::ZWSPACE || ch == SpecialChars::ZWNBSPACE || ch==SpecialChars::OBJECT)
                return CONTROL_GLYPHS + ch.unicode();
-	else if (ch == SpecialChars::NBSPACE)
-		return  m->char2CMap(QChar(' '));
+    else if (ch == SpecialChars::NBSPACE)
+        return  m->char2CMap(QChar(' '));
        else if(ch == SpecialChars::NBHYPHEN)
                return  m->char2CMap(QChar('-'));
        else
Index: scribus/scpageoutput.cpp
===================================================================
--- scribus/scpageoutput.cpp	(révision 17956)
+++ scribus/scpageoutput.cpp	(copie de travail)
@@ -500,7 +500,7 @@
 {
        uint glyph = glyphs.glyph;
        if (glyph == (ScFace::CONTROL_GLYPHS + SpecialChars::NBSPACE.unicode())) // NBSPACE
-		glyph = style.font().char2CMap(QChar(' '));
+        glyph = style.font().char2CMap(QChar(' '));
        else if (glyph == (ScFace::CONTROL_GLYPHS + SpecialChars::NBHYPHEN.unicode())) // NBHYPHEN
                glyph = style.font().char2CMap(QChar('-'));

Index: scribus/scribusdoc.cpp
===================================================================
--- scribus/scribusdoc.cpp	(révision 17956)
+++ scribus/scribusdoc.cpp	(copie de travail)
@@ -2512,7 +2512,10 @@
        symTab.addQuadPoint(5.90625, 0.828125, 5.90625, 0.828125, 6.9375, 1.79688, 6.9375, 1.64062);
        symTab.addQuadPoint(6.9375, 1.79688, 6.9375, 1.79688, 5.95312, 2.96875, 6.9375, 1.95312);
        symTab.addQuadPoint(5.95312, 2.96875, 5.95312, 2.96875, 4.82812, 3.96875, 4.98438, 3.96875);
-	symNonBreak.resize(0);
+    symSpace.resize(0);
+    symSpace.addQuadPoint(1.32812, 2.59375, 1.32812, 2.59375, 0.390625, 2.21875, 0.796875, 2.59375);
+//    symSpace.addQuadPoint(0.390625, 2.21875, 0.390625, 2.21875, 0, 1.3125, 0, 1.84375);
+    symNonBreak.resize(0);
        symNonBreak.addQuadPoint(1.32812, 2.59375, 1.32812, 2.59375, 0.390625, 2.21875, 0.796875, 2.59375);
        symNonBreak.addQuadPoint(0.390625, 2.21875, 0.390625, 2.21875, 0, 1.3125, 0, 1.84375);
        symNonBreak.addQuadPoint(0, 1.3125, 0, 1.3125, 0.390625, 0.390625, 0, 0.765625);
NBspace.diff (6,530 bytes)

Kunda

2016-04-07 20:48

updater


Kunda

2016-12-09 02:46

updater   ~0042807

@fahad if you have a moment, do you mind checking out the validity of this patch ?

Fahad

2016-12-11 03:10

developer   ~0042851

The patch is outdate. Things have changed by merging CTL.
@charette.s could you update the patch to 1.5.3svn?

user6573

2021-02-11 21:37

  ~0048822

maybe the "patch" tag should be deleted since it doesn´t work anymore?
