|ID||Project||Category||View Status||Date Submitted||Last Update|
|0011420||Scribus||Import / Export||public||2013-02-13 19:31||2022-01-26 21:53|
|Summary||0011420: 1.5 style management during page import|
|Description||[EDIT] The same issue exists when|
- copying an object in a document and paste it in another document
- placing an object in the scrapbook and paste it in another document
- importing some page(s) from some other document (0011814)
1.4 tried to cleverly manage styles during a page import - but code was not finished and functionnality was buggy. 1.5 is different but does not better at it.
Uploaded pageimport.sla is a document featuring 3 paragraph :
- A paragraph with pure "default par style" being defined as CYAN ARIAL UPPERCASE. When imported it keeps being "default par style" but the definition is not imported and so the look is correct.
- A paragraph with "default par style" and some local inline character formating (not using style definitions) : this is perfectly imported.
This paragraph includes also a bit of text styled with a named char style : "UserCharStyle". This part of text cannot be read once imported : all letters appear as big squares. + The named style has not been created in the importing document. There must be some big mismatch in the styles defintion and uses.
- A paragraph with a pure user defined paragraph style : UserParStyle, that does not formerly exists in the importing document. It includes both character properties : color, font, effects and paragraphe properties : lineheights.
Strangely, the paragraph looks partly well : color , lineheight, font and font size are ok but "uppercase" text effect has been lost.
- At first it looks like the imported styles have not been created in the document since they dont appear in the style window, but its only a display refresh issue because 2 newly created styles appear sooner or later in the style dialog : a new "default paragraph style" (that make 2 styles with same name; that's a problem) and the imported "UserParStyle".
The defined and used character style has not been imported at all.
- When looking more closely at the UserParStyle, it looks like
1) some of its properties have been copied truthfully (font, lineheight...)
2) some of its properties have been totally ignored (uppercase)
3) for the color of the font, its more complex. At first it appears to NOT have been copied into the style definition, but into the text itself, as inline formatting. But then later on, after some operations, it seems to appears that the style definition sometime changes itself to reflect the original style value.
That's a big lot of important issues that make the functionnality rather hazardous to use.
|Additional Information||- When testing the uploaded docs you'll notice that the import does not position the imported content at its right place : that's 0011411|
- this issue was reported by Gary Dale in debian bug system : https://bugs.debian.org/cgi-bin/bugreport.cgi?bug=800778 [^]
|related to||0011814||confirmed||Managing styles when pasting an object coming from another document|
|related to||0007359||confirmed||Appending text with styles uses incorrect formatting|
|related to||0002457||confirmed||Duplicate Styles from Scrapbook could be handled a bit more gracefully.|
|related to||0009598||new||Styles don't get imported properly|
|related to||0009464||new||Text formatting changes itself|
|related to||0011111||new||Style managing when importing pages|
|related to||0015851||new||Importing character style doesnt import character style|
|related to||0015274||new||Each copy/paste duplicates styles|
pageimport.sla (26,698 bytes)
2nd paragraph should read
- A paragraph with pure "default par style" being defined as CYAN ARIAL UPPERCASE. When imported it keeps being "default par style" but the definition is not imported and so the look is NOT correct.
At the end of a magazine creation session, requiring quite a few page-import actions (and maybe a couple of style-import actions too), the SLA is crippled with lots of "Copy of Suchstyle" and "Copy of Copy of Suchstyle". There even is a "Copie de Suchstyle (2)" which is its french counterpart. The "(2)" there is quite mysterious since there is no "Copie de Suchstyle" at all without the (2).
After researching in the SLA it appears that these "Copy of" styles are not used at all. So AFAIAC it's possible to delete them and it's quite easy to do so in editing the SLA with a text editor. Better would be not to create them, and even better would be to handle styles correctly during page or style imports.
Right now another experience :
I import various document using the same styles at the end of a document : the styles are not duplicated in the resulting merged document and everything looks allmost fine.
(But then, since no new style is created, a layout problem would have occured, in case the styles had had the same name but a different definition ???)
However, there seem to be a problem with interline space : when it has been changed localy, that change is not reported in the imported pages (the style default value used).
Importing another document's pages rises another issue : some characters become "bad glyph" squares...
A first management of this issue would be to plainly check, at the begining, whether there is a style conflict (= a style with the same name but with different properties in each of the SLA files). In case of such a conflict, scribus would display a detailed warning "There is a conflict with the style NAMEOFSTYLE" and basicaly enable to choose "Abort" or "Proceed".
Smarter action options could later be "Abort", "Overwrite existing style", "Keep existing style", "Rename imported style".
Smarter warning message would display the style differences : "Space after paragraph : 2pt (existing) / 0pt (imported) ; color : blue (existing) / darkblue (imported) ..."
||Think we should confirm this bug and set it for 1.5.1|
Also reported by Gary Dale in debian bug system : https://bugs.debian.org/cgi-bin/bugreport.cgi?bug=800778
The same issue exists when
- copy an object in a document and paste it in another document
- place an object in the scrapbook and paste it in another document
I committed several improvements related to this issue in r24307. Things should now work better when importing the sample document attached in first note.
At this point, I however cannot fix all issues related to text styles import as an issue related to the 1.5.0 and former file formats comes in the way : paragraph styles were until r24307 saved before character styles. This basically prevent us at this point to perform some necessary consistency checks when importing for eg. a paragraph style which depends on a specific character style. We may have to wait 1.7.x to completely fix import of text styles.
Wouaouh jghali great to learn you're on that issue.
As for the technical side of the issue, i dont understand how the file format interferes once the document is loaded... but you know.
|2013-02-13 19:31||JLuc||New Issue|
|2013-02-13 19:32||JLuc||File Added: pageimport.sla|

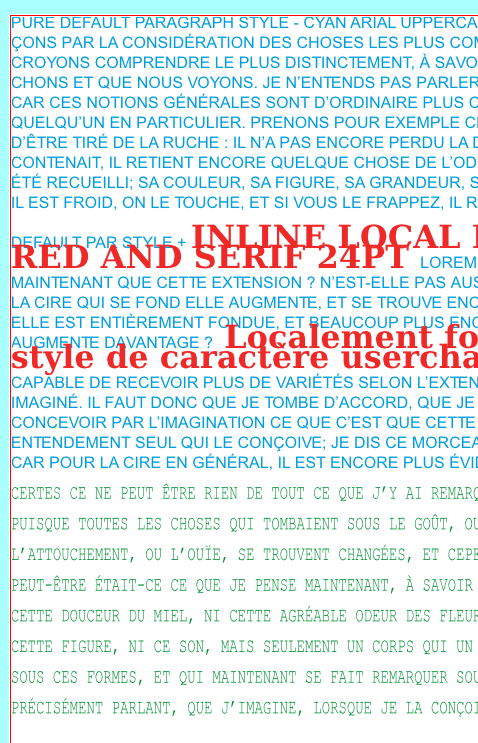

|2013-02-13 19:34||JLuc||File Added: originating.png|

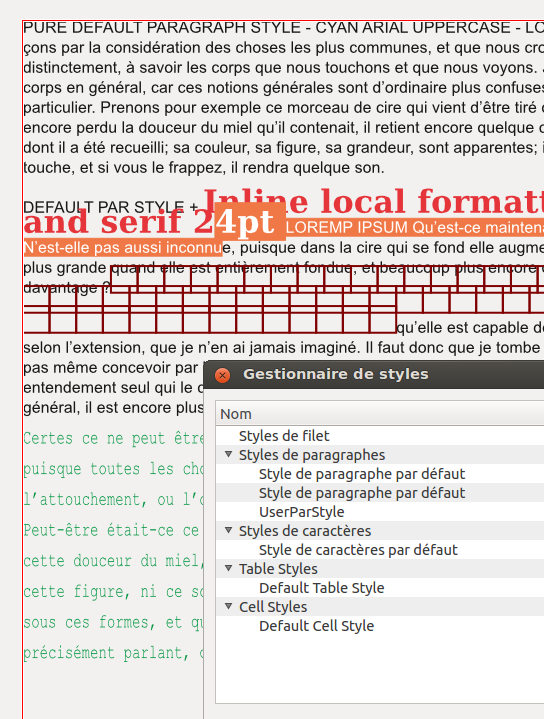

|2013-02-13 19:34||JLuc||File Added: once imported.png|
